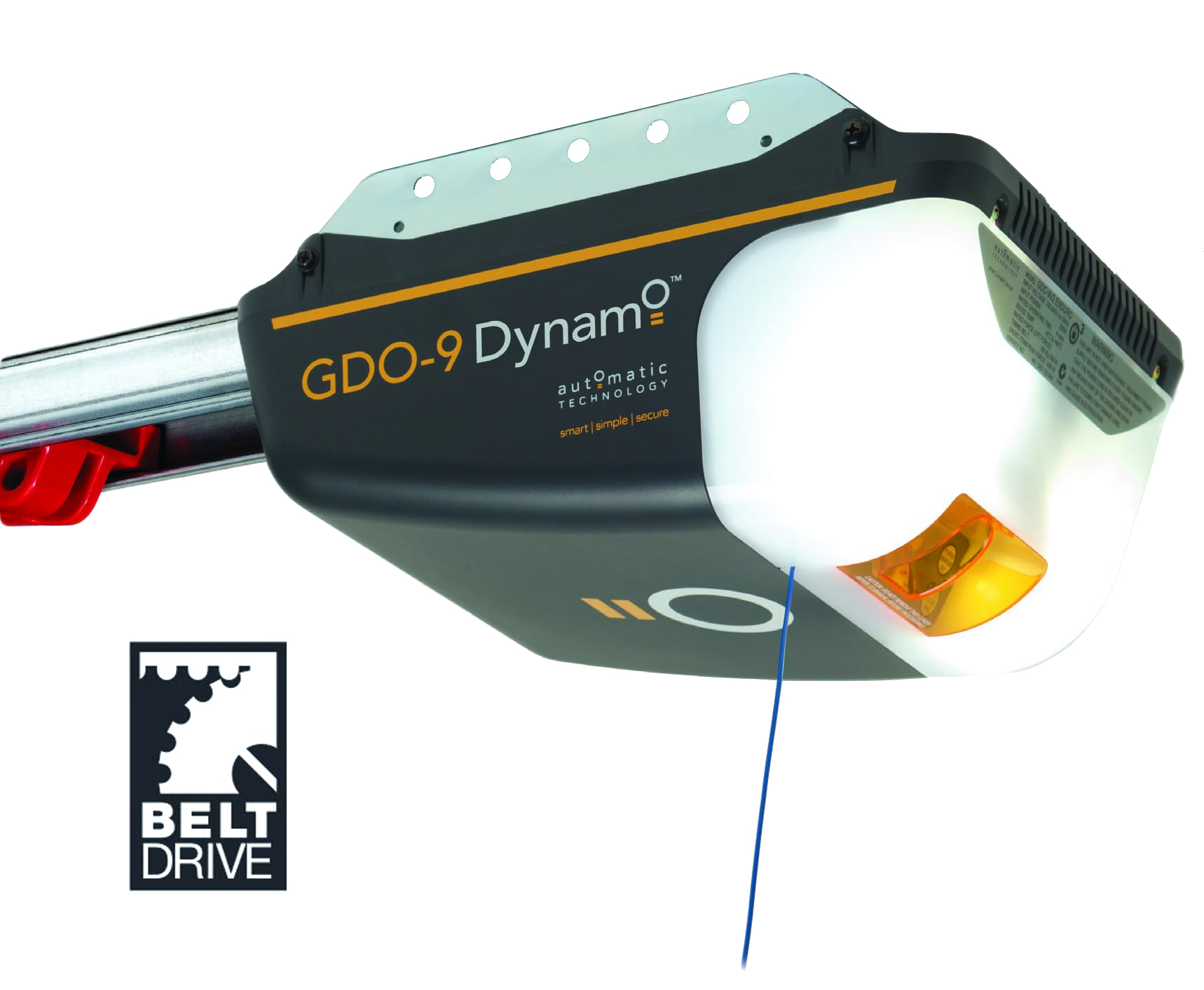

ATA GDO 9V3 GEN2 Home Owners Manual

Operating your door

For maximum efficiency of your opener, your garage door must be in good operating condition. An annual service of your garage door by an Approved Dealer is recommended.

CAUTION: Activate the opener only when the door is in full view, free of obstructions and with the opener properly adjusted. No one should enter or leave the garage while the door is in motion. Do not allow children to play with or near the door.

ELECTROCUTION! This opener is a mains voltage plug-in domestic appliance and there are no user serviceable parts inside this opener.

Transmitter

• To operate the opener, press the programmed transmitter button until your door begins to move (usually 2 seconds). Make sure you can see the door when you use the transmitter.
• If you are in a vehicle you should aim the transmitter through your windscreen (Fig. 4.1).
• Check that the door is fully closed before you drive away.
• If you press the transmitter whilst the door is moving the door will stop. The next press of the transmitter will move the door in the opposite direction.

The transmitter may also be programmed to operate the following features (Refer to Section 8 for full details):

• Turn the courtesy light on and off without operating the door,
• Put the garage door opener into “Vacation Mode” where it will not respond to any transmitters.

Note: Additional transmitters may be purchased at any time.
