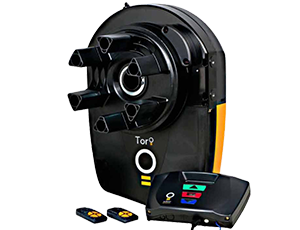

ATA – GDO-10V2 Manual v1.00

Pre-Installation Requirements

IMPORTANT SAFETY INSTRUCTIONS FOR INSTALLATION
Warning: Incorrect installation can lead to severe injury. Follow ALL installation instructions.

NOTE: Planetary chain equipment must be removed from the door prior to installation of GDO-10v2.

Door Operation
The door must be in good operating condition. The maximum effort to move the door up or down, from stationary, should not exceed 150 Newtons (15 kg force) at the bottom rail.

Lift the door to about halfway. When released, the door should stay in place supported entirely by its springs. Raise and lower the door to check for binding or sticking.

The door may need to be serviced to meet these requirements – refer to the door manufacturer’s servicing instructions or contact an authorised dealer.

Unsuitable Door Types
The fitting of an opener to doors with removable mullions or doors incorporating a wicket door is not recommended.

Position
The opener can be installed on either the right- or left hand side of the door (when viewed from inside the garage). The opener is factory set for right hand side installation.

This opener must be installed in a dry position that is protected from the weather. Moisture or corrosion damage is not covered by the Warranty.

Power Supply
Properly earthed 3 pin single-phase power is required.

WARNING! Using a portable power generator is not recommended. The opener may appear to malfunction due to spikes, surges, and fluctuations in the generated voltage.

Sideroom For Right Hand Side Installation
The minimum side room required from the edge of the door curtain is 140 mm to the inside of the door bracket when the opener is mounted on the door bracket (Fig. 04).

NOTE: The door axle diameter must not exceed 35mm.
