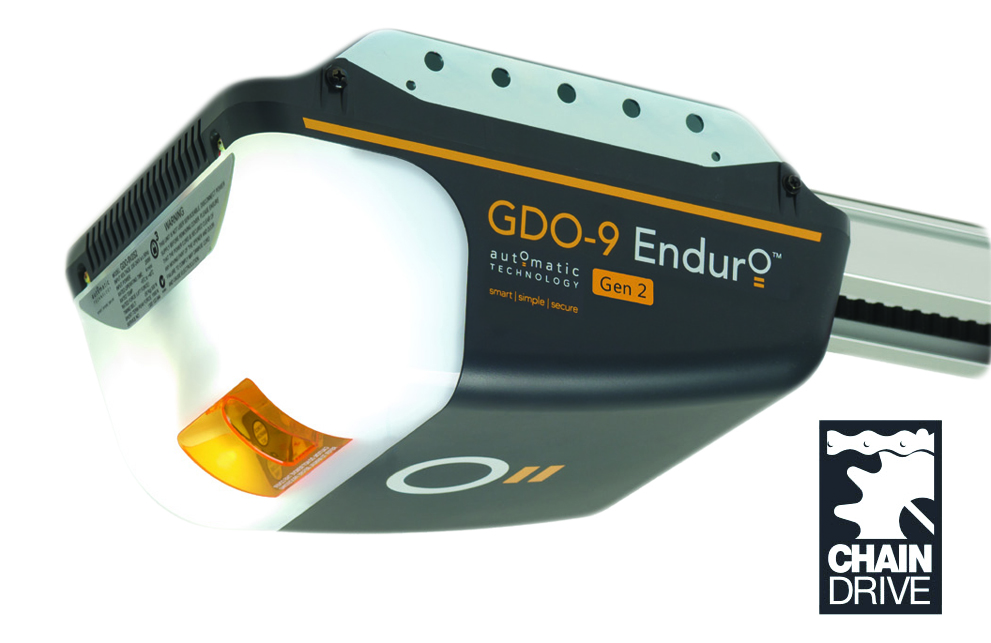

ATA GDO 9v2 GEN2 Home Owners Manual

Technical Specifications

Power supply: 230V – 240Va.c. 50Hz
Maximum door opening:

• Width: 6000mm (18.0m2)
• Height: 3000mm
• Weight: 100kg

Minimum headroom: 30mm
Short Term Peak Force: 1000N (100kg)

Rated force:

• 600N (60kg) with Chain
• 500N (50kg) with Timing Belt

Nominal force: 150N (15kg)
Receiver type: UHF Multi-frequency FM Receiver
Receiver code storage capacity: 64 X 4 button Transmitter Codes
Transmitter frequency: TrioCodeTM 128 Type
Coding type: Mulit-frequency Code Hopping
Number of code combinations: Over 100 billion random codes
Code generation: Non-linear encryption algorithm
Transmitter battery: CR2032 (3 Volts)
Courtesy light: LED (Light Emitting Diodes)

Note: Intermittent operations may occur in areas which experience very strong winds. The strong wind puts extra pressure on the door and tracks which may in turn intermittently trigger the safety obstruction detection system.
