GDO-6v3 EasyRoller®
Roll Up Garage Door Opener
INSTALLATION INSTRUCTIONS | OWNERS COPY
Featuring
Technology
TrioCode™
Part # 13236 (Manual) v1.01

2
GDO-6v3 EasyRoller Owner Installation Instructions
®
WARNING: It is vital for the safety of persons to follow
all instructions. Failure to comply with the installation
instructions and the safety warnings may result in
serious personal injury and/or property and opener
damage. Please save these instructions for future
reference.
Automatic Technology (Australia) Pty Ltd to the extent that such may be lawfullyexcluded hereby expressly disclaims all

conditions or warranties, statutory or otherwise which may be implied by laws as conditions or warranties of purchase of
an Automatic Technology (Australia) Pty Ltd Roll Up Door Opener. Automatic Technology (Australia) Pty Ltd hereby
further expressly excludes all or any liability for any injury, damage, cost, expense or claim whatsoever suffered by any
person as a result whether directly or indirectly from failure to install the Automatic Technology (Australia) Pty Ltd Roll Up
Door Opener in accordance with these installation instructions.

Owner Installation Instructions GDO-6v3 EasyRoller®
3
Important Safety Instructions
Features
Operating Controls

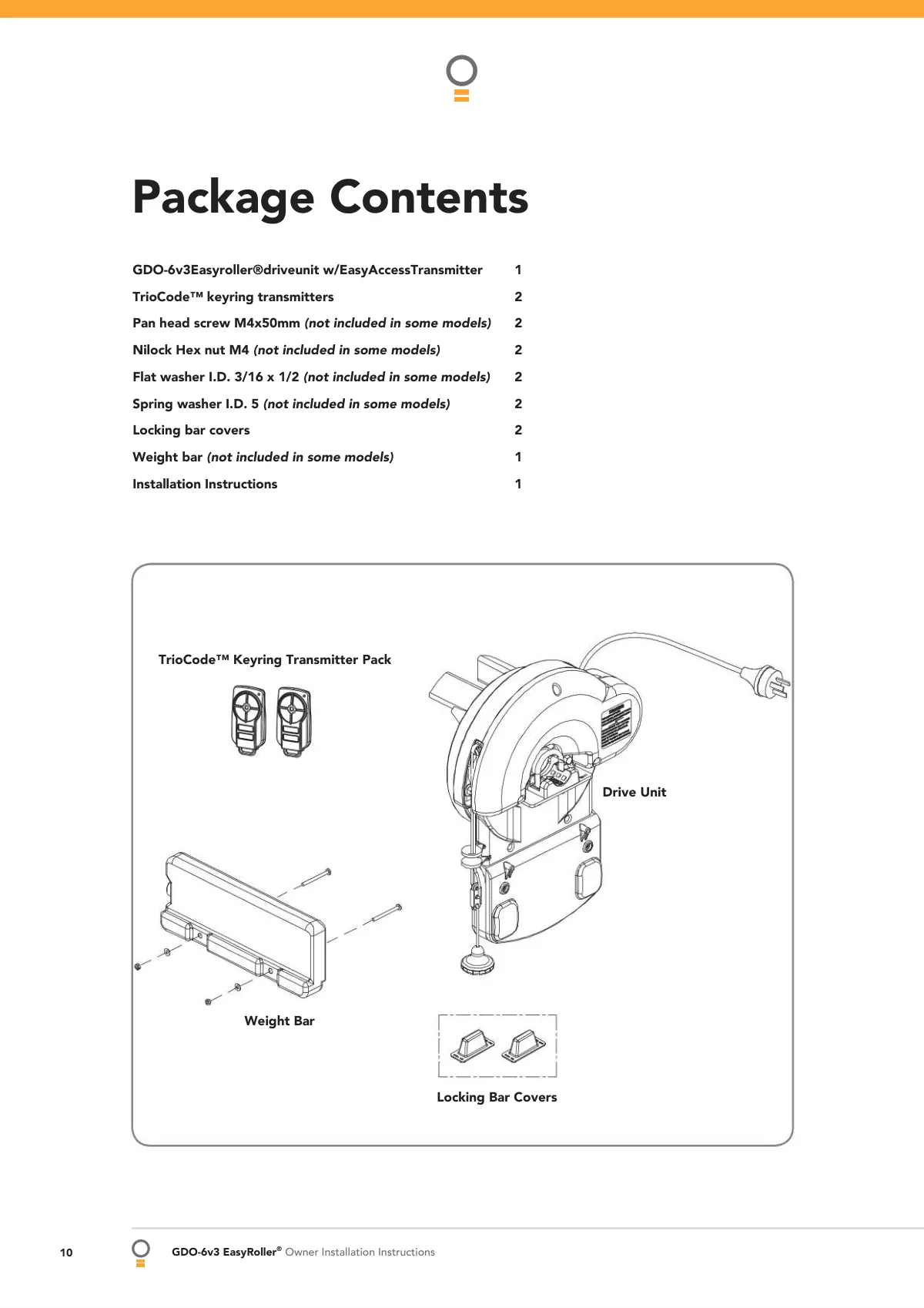

Package Contents
Installation
Pre-Installation Requirements
Installation
Programming the Opener
Setting Limits
Setting Limits: via Transmitter
Safety Obstruction Force
Safety Obstruction Force Test
Adjusting Safety Obstruction Forces
Coding Transmitters
Door
Courtesy Light
Pet (Pedestrian) Mode
Vacation Mode
Easy Access Transmitter Coding
Remotely Coding Transmitters
Deleting Transmitter Codes
Accessories
Photo Electric Beam
Auto-Close
Final Setup
Setting of Courtesy Light Time
Setting the Pet Mode Position
Wall Transmitter Installation
Keyswitch Connection
Auxilary Output
Reset all Factory Defaults
SmartSolar™ Installation
Battery Backup Kit Installation
Parameters
Door Status Indicators
Button Functions
Default Settings & Specifi cations
Troubleshooting
Maintenance
Spare Parts
Warranty
4
6
8
10
11
11
12
15
15
16
17
17
18
19
19
19
19
19
20
20
21
22
22
23
24
24
24
24
24
25
25
26
27
28
28
29
30
31
32
33
35
GDO-6v3 EasyRoller®
Roll Up Garage Door Opener

4
GDO-6v3 EasyRoller Owner Installation Instructions
®
CAUTION: If your garage has no pedestrian entrance door, an emergency access device should be installed.
This accessory allows manual operation of the garage door from outside in case of power failure.
For ADDITIONAL SAFETY protection we STRONGLY recommend the fi tting of a Photo Electric (PE)
Beam. In most countries, PE Beams are mandatory on all garage doors fi tted with automatic openers.
For a small additional outlay, Automatic Technology recommends that Photo Electric Beams be
installed with the automatic opener ensuring additional safety and peace of mind.
DO NOT operate the opener unless the garage door is in full view and free from objects such
as cars and children/people. Make sure that the door has fi nished moving before entering or
leaving the garage.
DO NOT operate the opener when children/people are near the door. Children must be
supervised at all times when the EasyRoller® is in use. Serious personal injury and/or
property damage can result from failure to follow this warning.
DO NOT allow children to operate the EasyRoller®. Serious personal injury and/
or property damage can result from failure to follow this warning.
Regularly check to make sure that the Safety Obstruction Force is working
correctly, and is tested and set as per page 17 of this manual. Failure to
follow these instructions could result in serious personal injury and/or
property damage. This test must be repeated at regular intervals and the
necessary adjustments made as required.
Doors requiring over 400N of force to move must have PE Beams
installed.
DO NOT disengage the door opener to manual operation with
children/people or any other objects including motor vehicles
within the doorway.
The door opener is not intended for use by young children
or infi rm persons without adequate supervision. Children
should be supervised to ensure that they do not play
with the remote transmitters or the opener.
Keep hands and loose clothing clear of the door
and door opener at all times.
WARNING: It is vital for the safety of persons to follow
all instructions. Failure to comply with the following
Safety Instructions may result in serious personal injury
and/or property damage.
Important Safety Instructions

Owner Installation Instructions GDO-6v3 EasyRoller®
5
The unit should be installed so that it is protected from the elements. It should not be exposed to water or rain.
It is not to be immersed in water or sprayed directly by a hose or other device.
The garage door must be well balanced. Sticking or binding doors must be repaired by a qualifi ed garage
door installer prior to installation of the opener.
Frequently examine the installation, in particular cables, springs and mountings for signs of wear, damage
or imbalance. DO NOT use if repair or adjustment is needed since a fault in the installation or an
incorrectly balanced door may cause injury. DO NOT attempt to repair the door yourself as hardware
is under extreme tension.
Remove or disengage all garage door locks and mechanisms prior to installation of the opener.
Connect the opener to a properly earthed general purpose 220V mains power outlet installed
by a qualifi ed electrical contractor.
Disconnect the power cord from mains power before making any repairs or removing
covers. Only experienced service personnel should remove covers from the opener.
When using Auto-Close mode, a photo electric beam must be fi tted correctly and
tested for operation at regular intervals. Extreme caution is recommended when
using Auto-Close mode. All safety rules must be followed.
In order for the EasyRoller® to sense an object obstructing the door way,
some force must be exerted on the object. As a result the object, door and/
or person may suffer damage or injury.
If the power supply cord is damaged, it must be replaced by an
Automatic Technology service agent or suitably qualifi ed person.
Make sure that the door is fully open before driving in or out of the
garage and fully closed before leaving the driveway.
Make sure that remote transmitters are kept out of reach of
children.
Install the (optional) wall switch or (optional) wall
mounted transmitter in a location where the garage
door is visible, but out of the reach of children at a
height of at least 1.8 metres from the fl oor.
Important Safety Instructions

6
GDO-6v3 EasyRoller Owner Installation Instructions
®
Operation

Auto courtesy light

TrioCode™ Code Hopping Technology

ISS (intelligent safety obstruction system)

ALPS (Automatic Limits Positioning System)

Toopenor close the door simply press a button on a TrioCode™ handheld
transmitter, a wall mounted transmitter, or optional wall switch for two seconds.
During open and close cycles the door can be stopped by pressing the button
again. The next actuation will move the door in the opposite direction.
ALPS does away with manual adjustmentofthedoor’slimits position using mechanical
parts, such as cams and microswitches. During installation the handheld transmitter can be
programmed to set the door limits positions.
The courtesy lightcomeson automatically for three minutes whenever the door is activated. The light can also
be operated independently of the door by coding a dedicated button on a transmitter.
Whilethe door is performing a close cycle, should it hit an obstacle or be restricted in some manner, it
will automatically reverse. The amount of force the door should encounter before reversing is automatically
adjusted by the doors control system during the initial installation of the automatic door opener. The door will
also stop if restricted whilst opening. The Safety Obstruction Force should be checked monthly.
Everytime aTrioCode™ transmitteris used a new security code is randomly
generated from over 4.29 billion possibilities. This greatly enhances the security of
the system and makes “code grabbing” a thing of the past
These transmitters also overcome interference issues by simultaneously sending a
signal over three slightly different frequencies. Even if two of the three signals are
jammed, the system will still work.
Features
Thank
you
for
purchasing
the
Automatic
Technology EasyRoller® Automatic Garage Door
Opener. Designed by our renowned engineers to
suit Vertical Operating Continuous Curtain Roll up
doors, the EasyRoller® will provide years of
smart, simple
& secure convenience to your home.

Owner Installation Instructions GDO-6v3 EasyRoller®
7
Manual operation
The opener is equipped with a unique manual disengaging device. If the power to the opener is
disrupted, the door can be put into manual mode by pulling down on the string handle on an angle
towards the door. This allows for manual operation of the door. To re-engage the opener, pull the
string handle away from the door.
Easy Access Transmitter

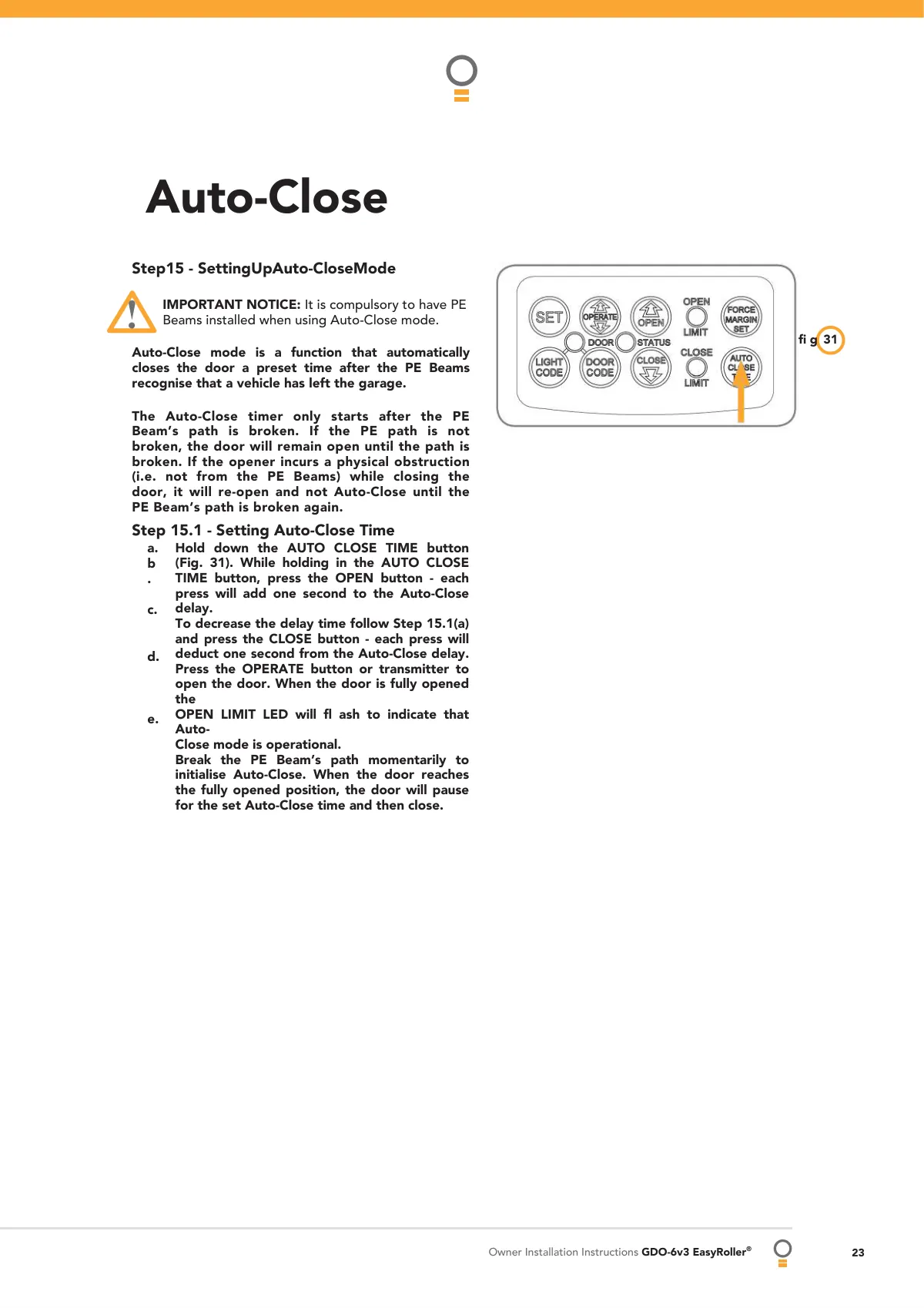

Auto-Close mode
Vacation mode

Photo Electric (PE) Beam (optional)

Pet/Pedestrian mode
SmartSolar™ and Battery Backup Compatibility (optional)

TheopenerhasaninputtoconnectaPEBeamfor extra safety and use of the Auto-Close mode.
Insidethemanualreleasehandle is a transmitter designed to be in easy reach so that the garage door can
be operated without having to stretch to reach the operate button on the control panel.
The opener can be programmed to automatically close after an open cycle. The Auto-Close
time is adjustable. It is compulsory to install a PE Beam if this mode is selected, otherwise the
door may cause personal injury or damage to property.
Ahandheld transmitter can be programmed to lock and unlock all other
transmitters that have been programmed into the openers’ memory. The vacation
mode can be used when the door is left idle for long periods of time.
The transmitter can be programmed to open the door to an adjustable partial height
so that the family pet can enter and exit the garage at any time. You may also wish to
open the door to a height suitable for pedestrian access.
The opener can be fi ttedwith a SmartSolar™ or Battery Backup kit for operation in
the event of a power outage, or where mains power access is not available. NOTE: If
the door is the only entrance to the garage, and a battery backup kit is not fi tted,
a keyed cable release should be fi tted externally to the garage.

8
GDO-6v3 EasyRoller Owner Installation Instructions
®

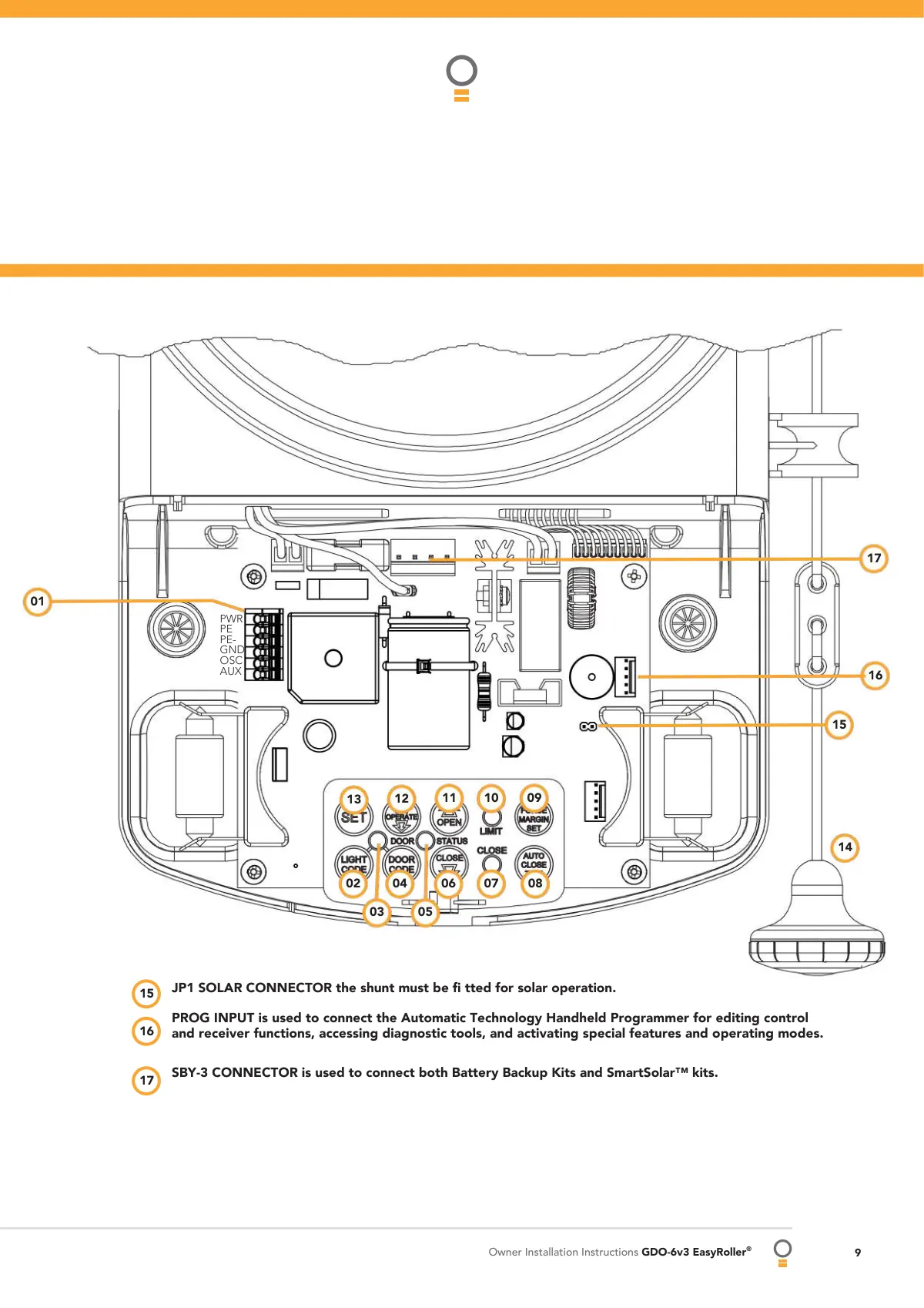

Operating Controls

Terminal Block.
24V PWR is used to power photo electric beam.
PE (Input) for photo electric beam.
PE (-) is used to power photo electric beam.
GND is used with OSC input or AUX output
O/S/C INPUT is used for the connection of a wired switch (momentary contact). This switch
can then be used to open, stop or close the door. Install the wall switch in a location where
the switch is out of reach of children and the garage door is visible.
AUX (output) can be used to control an alarm system.
LIGHT CODE button (White) is used for storing or erasing the transmitter button (code) you wish to use
to switch the courtesy light on the opener on or off.
CODING LED (Red) light fl ashes when a code is being stored or when a transmitter button is pressed.
DOOR CODE BUTTON (Blue) is used for storing or erasing transmitter buttons for door operation
DOOR STATUS LED (Yellow)
CLOSE button (Red) is used during installation to help set the close limit position. Pressing and holding
this button will move the door in the close direction. Movement stops when the button is released.
NOTE: The safety obstruction detection is inoperable when the CLOSE button is used to move door.
CLOSE LIMIT LED (Red) the LED is very helpful during installation. It illuminates and fl ashes when the
door is closing and remains steady on when the close limit position has been reached.
AUTO CLOSE TIME button (White) is used to adjust the Auto-Close time. Pressing the open button
whilst pressing the Auto Close button increases length of operation. Each press will increase the
time by 5 seconds. Pressing the close button will decrease the time.
FORCE MARGIN SET button. The obstruction force margin is set automatically during installation. The
margin can be adjusted manually using the Force Margin Set button (White). Holding the Force
Margin Set button and pressing OPEN or CLOSE buttons will increase or decrease the amount of
force. The Force Margin Set should only be used if environmental factors (wind, etc.) affect the door’s
operation.
OPEN LIMIT LED (Green) the LED is very helpful during installation. It illuminates and fl ashes when the
door is opening and remains steady on when the open limit position has been reached.
OPEN button (Green) is used during installation to help set the open limit position. Pressing and holding
this button will move the door in the open direction, releasing stops the door.
NOTE: The safety obstruction detection is inoperable when the OPEN button is used to move door.
OPERATE button (Yellow) is used during installation to test the open, stop and close cycles for the
opener. The opener has to be initialised by the Reset button to make the O/S/C button operable.
SET button (Yellow) is used during the installation phase together with the Open and Close buttons to set
the door limit positions. The Set button is also used to re-initialize the Opener.
ENGAGE/DISENGAGEMENT CORD enables manual door operation, especially useful during
power failures. At the cord’s end is the EASY ACCESS TRANSMITTER; a wireless door controller.
01
02
03
04
05
06
07
08
09
10
11
12
13
14

PWR
PE
PE-
GND
OSC
AUX
 Owner Installation Instructions GDO-6v3 EasyRoller®
9
01
15
16
17
13
12
02
04
06
03
05
11
10
07
09
08
15
14
17
16
JP1 SOLAR CONNECTOR the shunt must be fi tted for solar operation.
PROG INPUT is used to connect the Automatic Technology Handheld Programmer for editing control
and receiver functions, accessing diagnostic tools, and activating special features and operating modes.
SBY-3 CONNECTOR is used to connect both Battery Backup Kits and SmartSolar™ kits.

10
GDO-6v3 EasyRoller Owner Installation Instructions
®
Package Contents

Weight Bar
TrioCode™ Keyring Transmitter Pack
GDO-6v3Easyroller®driveunit w/EasyAccessTransmitter
TrioCode™ keyring transmitters
Pan head screw M4x50mm (not included in some models)
Nilock Hex nut M4 (not included in some models)
Flat washer I.D. 3/16 x 1/2 (not included in some models)
Spring washer I.D. 5 (not included in some models)
Locking bar covers
Weight bar (not included in some models)
Installation Instructions
1
2
2
2
2
2
2
1
1
Locking Bar Covers
Drive Unit

Owner Installation Instructions GDO-6v3 EasyRoller®
11

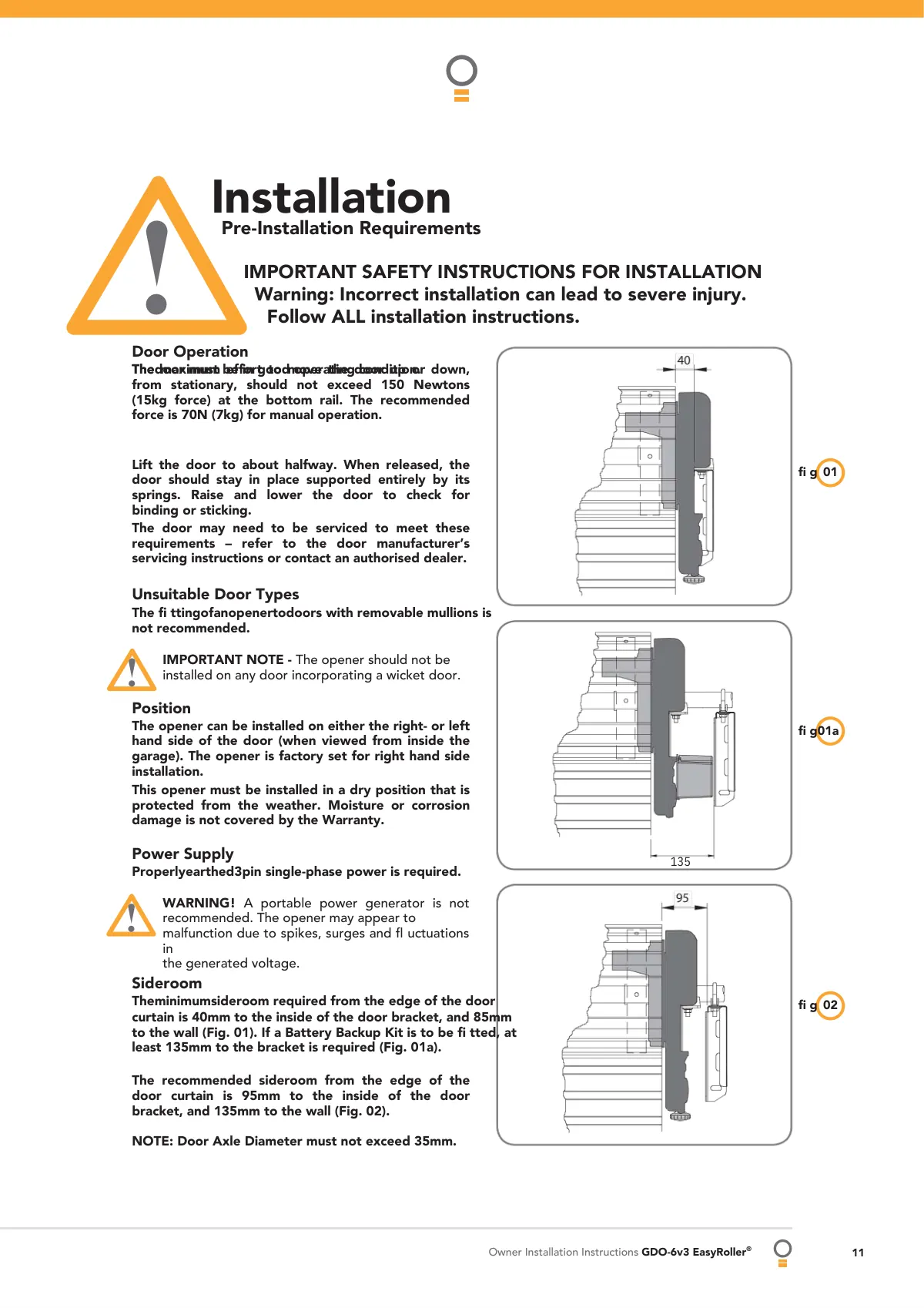

Installation
Pre-Installation Requirements
IMPORTANT SAFETY INSTRUCTIONS FOR INSTALLATION
Warning: Incorrect installation can lead to severe injury.
Follow ALL installation instructions.
fi g 01
fi g 02
fi g01a
Position
The opener can be installed on either the right- or left
hand side of the door (when viewed from inside the
garage). The opener is factory set for right hand side
installation.
Sideroom

Power Supply

Door Operation

Unsuitable Door Types

Properlyearthed3pin single-phase power is required.
This opener must be installed in a dry position that is
protected from the weather. Moisture or corrosion
damage is not covered by the Warranty.
The fi ttingofanopenertodoors with removable mullions is
not recommended.
Thedoor must be in good operating condition.
The maximum effort to move the door up or down,
from stationary, should not exceed 150 Newtons
(15kg force) at the bottom rail. The recommended
force is 70N (7kg) for manual operation.
Lift the door to about halfway. When released, the
door should stay in place supported entirely by its
springs. Raise and lower the door to check for
binding or sticking.
The door may need to be serviced to meet these
requirements – refer to the door manufacturer’s
servicing instructions or contact an authorised dealer.
Theminimumsideroom required from the edge of the door
curtain is 40mm to the inside of the door bracket, and 85mm
to the wall (Fig. 01). If a Battery Backup Kit is to be fi tted, at
least 135mm to the bracket is required (Fig. 01a).
The recommended sideroom from the edge of the
door curtain is 95mm to the inside of the door
bracket, and 135mm to the wall (Fig. 02).
NOTE: Door Axle Diameter must not exceed 35mm.
IMPORTANT NOTE - The opener should not be
installed on any door incorporating a wicket door.
WARNING! A portable power generator is not
recommended. The opener may appear to
malfunction due to spikes, surges and fl uctuations
in
the generated voltage.
135

12
GDO-6v3 EasyRoller Owner Installation Instructions
®
Installation
Step 1 - Preparation
a.

Step 2 - Fit the Weight Bar
Theweightbarmust befittedtothe bottom-centre for
proper operation of theopener.
b.
c.
d.

a.
b.

Remove the door handle
Fit the weight bar and refi t the handle using the
new fasteners provided
.
Ifthedoordoesnothavea handle:
Affi x the warning labels supplied with this opener in
a prominent place where they are clearly visible.
Choose the side where the opener will be installed
ensuring there is suffi cient sideroom.
Checkthedoor’s operation:
i.
The door must travel smoothly and be
easy to operate by hand.
Operating force on the bottom rail
should be approximately 70N (7kgs)
force.
Adjust
any
tight
or
twisted
guides/tracks Clean the guides if there
is any oil or wax present using a
suitable white spirit. The only lubricant
suitable for use on door guides is silicon
spray. DO NOT use WD- 40, RP-7,
petroleum grease, or similar.
ii.
iii
.
iv
.
Install the locking bar covers if there are locking bar
holes in the guides.

a.
Locate the centre of the door at the bottom rail
.
b.
Place the weight bar at this point (there is a
centreline marked on the weight bar) and mark
the two positions where the fasteners will go.
Drill the two 4.5mm holes in the door and fi t the
weight bar using the new fasteners provided.
(Fig.06).
c.
Check that the door is still balanced and smooth to
operate. If it is not, then the door may require
servicing (refer to door manufacturer’s instructions).
Ifthedoorhasa handle:
(Fig.04)
(Fig.05)
WARNING! The door and its springs are under
signifi cant tension. Adjustments should only
be carried out by experienced persons, as this
function can be dangerous if not performed under
strict safety procedures.
(Fig.03)
IMPORTANT NOTE - Do not lock your door with
the locking bars after installing the opener.
Remove or disable the lock using wire or cable
ties. Security is not affected as the opener has an
inbuilt locking facility.
fi g 03
fi g 05
fi g 06
fi g 04

Owner Installation Instructions GDO-6v3 EasyRoller®
13
Installation

fi g 07
fi g 08
Step 4 - Fitting the opener
Step3 - PintheDoorCurtain
c.
a.
e.
f.
b.
d.
At the end where the opener will be fi tted, use
masking tape or pen to mark the position of
the U-bolt in the door bracket and the
position of the door bracket on the wall to
assist in reassembling. Remove the U-bolt (or
bolts) and saddle from the door bracket.
Remove the door bracket allowing the door to
rest
on the support
At the end opposite to where the opener will
be
fi tted, check that the U-bolt is tightened
securely. Fit the anti-coning collar (supplied) to
the axle fl ush
with the door drum.
Open the door completely and tie safety ropes
around the door roll approximately 300mm from
each end. Do not tie the ropes too tight as
damage to the curtain may ensue.
At the end where the opener is to be fi tted,
support
the door with a ladder or suitable prop:
Pinning thedoor curtain tothe doordrummaintains
security when the opener closes andlocks.
a.
b
.
c.
Fully close the door.
Mark drill holes at both ends of the drum (Fig.
07). Drill holes using 3.2mm (1/8”) drill bit. Open
the door slightly for easier access, if necessary.
Fit a 10 x 32mm screw and washer to each end.
This screw should be positioned as low as
possible, but make sure that it does not alter the
curtain’s normal approach to the guide (lead-in
angle).
d.
NOTE: Make sure that the screws do not project into the
area where the internal gear will fi t.
(Fig. 08).
NOTE - For minimum sideroom installations the
door may have to be taken down.
WARNING! The opener must not be used with a
door incorporating a wicket door.
WARNING! Make sure the support is snug under
the door, stable and will not move.
Door drum
Pin Points
U-bolt
Bracket

14
GDO-6v3 EasyRoller Owner Installation Instructions
®
Step 5 - Mounting the Opener

a.
Iftheinternal gear does not rotate freely, switch the
opener
to
manual
by
pulling
the
disengagement handle down (there will be a
click), so that the ring gear can be rotated by
hand.
Slide the opener over the door axle and into
the drum of the door (Fig. 09).
Ensure the internal gear is pushed in as far as
possible (without interfering with the door
curtain) and that one of the door drum’s wheel
spokes is completely between the opener’s
drive forks. Re-attach the door bracket using
your reference marks as a guide and tighten
the bolts. Ensure that the slots in the
mounting bracket of the opener align with the
slots in the door bracket, otherwise the door
bracket may have to be relocated (Fig. 10).
b.
c.
d.
NOTE: If the bracket cannot be relocated, the opener
may be fi tted onto the axle using the opener’s saddle
and U-bolt as follows:
i.
Using your reference marks as a guide,
sit the opener on the door mounting
bracket and secure with the opener’s
U-
bolt and saddle and tighten fi rmly.
Adjust the door position (if necessary)
on the brackets so that the door feeds
smoothly into the guides. Make sure
that the centre of the door doesn’t hit
the lintel and that the curtain is not
pushed forward hard into the guide.
ii.
e.
Remove the support and safety ropes (Fig. 10).
IMPORTANT NOTE - If the manual release
handle
is more than 1.8 metres from fl oor level when
the
opener is installed, extend the handle to a
height less than 1.8 metres.
f.
Connect the power cord to a suitable power
point, but DO NOT SWITCH ON. Secure the
power cord away from any moving object (e.g.
the door) with the cable clip supplied.
With the opener still disengaged, pull the door
up and down to make sure it runs freely.
g.
fi g 09
fi g 10
Installation
REMOVE PROP
UNTIE ROPE
REFIT RIGHT
BRACKET
PULL STRING HANDLE
IF GEAR IS NOT
TURNING FREELY
TIGHTEN “U”
BOLT NUTS

Owner Installation Instructions GDO-6v3 EasyRoller®
15
Programming the Opener

NOTE: If PE Beams are to be used they must be installed
before setting the travel limits.
fi g 12
fi g 11
Step6.1 - SettingTravelLimits

read the above warning.
WARNING! Once the next step is performed, the
door will automatically close and open to calculate
force settings. Keep persons and objects clear of
the door until it stops and the opener sounds a
beep.
PresstheSETbuttontostore the open limit. Please
WARNING!
Use
caution
whenoperating
the
manual release with the door open since it may fall
rapidly due to weak or broken springs, or an
improperly balanced door.
CAUTION! Do not disengage the opener to
manual operation with children, persons or any
objects including motor vehicles within the
doorway.
i
.
j
.
i.
f.
k.
a.
b.
c.
d.
e.
g.
h.

To reset the limits, press and hold the CLOSE button
for 6
seconds until the CLOSE LIMIT LED fl ashes quickly. If
no
action is taken within 30 seconds, the opener will
return to normal operating mode and restore the
original limit settings.
Move the door to half way open. If necessary,
disengage the opener by pulling the cord down
(Fig. 11).
Re-engage the opener by pulling the cord down.
Turn on the power to the opener. The CLOSE
LIMIT
LED will be fl ashing.
Press and hold the CLOSE button - the door
should starting closing (Fig. 12).
If the door opens, release the CLOSE button and
press the OPERATE button once to change the
motor’s direction. Press the CLOSE button again
to close the door.
Release the CLOSE button when the door is near
the desired closed position. Single presses of the
CLOSE button will “inch” the door closed.
If the door overshoots, press the OPEN button
to move the door in the open direction.
When the door is at the desired close position,
press the SET button to record the close limit
position. The
OPEN LIMIT LED will now fl ash.
Press and hold the OPEN button to open the
door Release the OPEN button when the door is
near the desired open position. Single presses of
the OPEN button will “inch” the door open.
If the door overshoots, press the CLOSE button
to move the door in the close direction.
Step6.2 - ResettingTravelLimits

16

(Inch Close)

(Inch Open)
(Set)
Button 4
Button 1
Button 2
GDO-6v3 EasyRoller Owner Installation Instructions
®

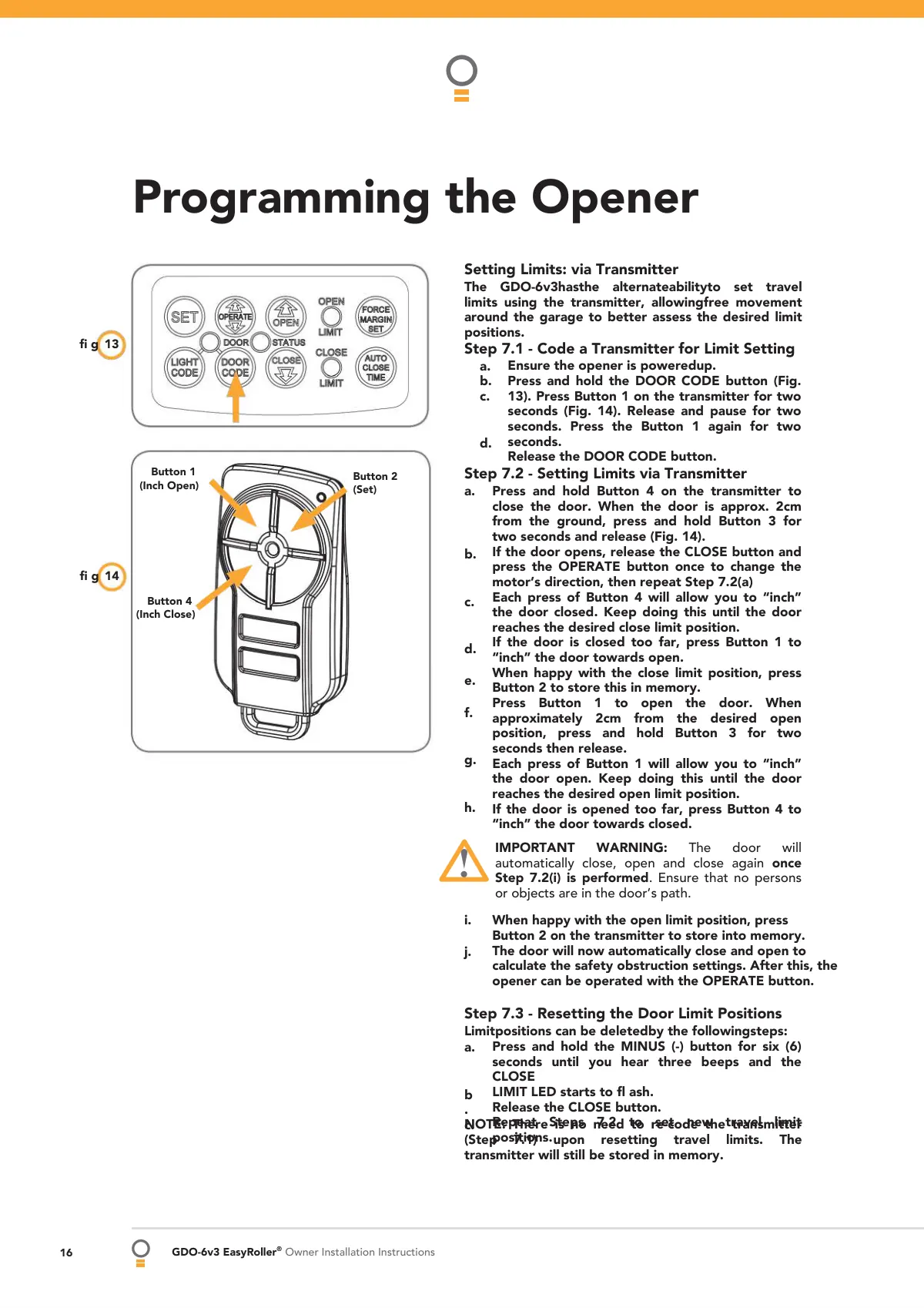

Programming the Opener

fi g 13
fi g 14
Setting Limits: via Transmitter
Step 7.2 - Setting Limits via Transmitter
Step 7.1 - Code a Transmitter for Limit Setting

Step 7.3 - Resetting the Door Limit Positions

Press and hold the MINUS (-) button for six (6)
seconds until you hear three beeps and the
CLOSE
LIMIT LED starts to fl ash.
Release the CLOSE button.
Repeat Steps 7.2 to set new travel limit
positions.
i.
j.
c.
a.
h.
b.
d.
e.
f.
g.
a.
b.
c.
d.
The GDO-6v3hasthe alternateabilityto set travel
limits using the transmitter, allowingfree movement
around the garage to better assess the desired limit
positions.
When happy with the open limit position, press
Button 2 on the transmitter to store into memory.
The door will now automatically close and open to
calculate the safety obstruction settings. After this, the
opener can be operated with the OPERATE button.
Press and hold Button 4 on the transmitter to
close the door. When the door is approx. 2cm
from the ground, press and hold Button 3 for
two seconds and release (Fig. 14).
If the door opens, release the CLOSE button and
press the OPERATE button once to change the
motor’s direction, then repeat Step 7.2(a)
Each press of Button 4 will allow you to “inch”
the door closed. Keep doing this until the door
reaches the desired close limit position.
If the door is closed too far, press Button 1 to
“inch” the door towards open.
When happy with the close limit position, press
Button 2 to store this in memory.
Press Button 1 to open the door. When
approximately 2cm from the desired open
position, press and hold Button 3 for two
seconds then release.
Each press of Button 1 will allow you to “inch”
the door open. Keep doing this until the door
reaches the desired open limit position.
If the door is opened too far, press Button 4 to
“inch” the door towards closed.
Ensure the opener is poweredup.
Press and hold the DOOR CODE button (Fig.
13). Press Button 1 on the transmitter for two
seconds (Fig. 14). Release and pause for two
seconds. Press the Button 1 again for two
seconds.
Release the DOOR CODE button.
Limitpositions can be deletedby the followingsteps:
a.
b
.
c.NOTE: There is no need to re-code the transmitter
(Step
7.1)
upon
resetting
travel
limits.
The
transmitter will still be stored in memory.
IMPORTANT
WARNING:
The
door
will
automatically close, open and close again once
Step 7.2(i) is performed. Ensure that no persons
or objects are in the door’s path.

Owner Installation Instructions GDO-6v3 EasyRoller®
Wood (40mm high)
17
Safety Obstruction Force

fi g 15
fi g 16
WARNING! Takecare whentestingoradjusting
the Safety Obstruction Force. Excessive force may
cause
SERIOUS
PERSONAL
INJURY
and/or
PROPERTY DAMAGE.
DANGER! If the door fails these tests, put the
opener into manual mode, only operate the
door by hand and call for service.
Step 8.2 - Testing Open Cycle

Safety Obstruction Force Test
Step 8.1 - Testing Close Cycle

c.
a.
b.
c.
a.
b.
Press the OPERATEbuttontoopen the door (Fig.
15).
Place a piece of timber approximately 40mm high
on the fl oor directly under the door (Fig. 16).
Press the OPERATE button to close door. The door
should strike the object and start to re-open.
Press theOPERATEbutton to close the door (Fig.
15).
Press again to open the door. When the door
reaches the half open point, grab the bottom rail
of
the door fi rmly and the door should stop.
If the door does not reverse readily when
closing, or stop when opening, the force may
be excessive and need adjusting, refer below.

18
GDO-6v3 EasyRoller Owner Installation Instructions
®
Adjusting Safety Obstruction Force

Step 9.1 - To Increase Force Pressure

Step 9.2 - To Decrease Force Pressure

Step 9.3 - To Recall Factory Set Force

Step 9.4 - To Recalculate Force Margins
a.
b.
a.
b.
c.
d.
a.
b.
Hold down FORCE MARGIN SET button(Fig. 17).
While holding the FORCE MARGIN SET button,
press the OPEN button. Each press increases the
force margin.
The OPEN LIMIT LED will fl ash each time the OPEN
button is pressed to indicate a force increase.
c.
NOTE: If the OPEN LIMIT LED fl ashes continuously
when pressing the OPEN button, this indicates that
the maximum setting has been reached.
d.
Test the force again as per Steps 8.1 and 8.2
a.
b.
Hold down FORCE MARGIN SET button(Fig. 17).
While holding the FORCE MARGIN SET button,
press the CLOSE button. Each press decreases the
force margin.
The CLOSE LIMIT LED will fl ash each time the CLOSE
button is pressed to indicate a force decrease.
c.
NOTE: If the OPEN LIMIT LED fl ashes continuously
when pressing the OPEN button, this indicates that
the maximum setting has been reached.
d.
Test the force again as per Steps 8.1 and 8.2
While holding down theFORCEMARGIN SET
button, press the SET button for two (2) seconds.
(Fig. 18)
Release both buttons. The default setting should
now be recalled.
The SafetyObstruction Force is calculated automatically
during setup. Adjusting this is normally only
necessitated by environmental conditions such as
windy or dusty areas, and areas with extreme
temperature changes.
Press and hold the SET Button for two (2) seconds,
the beeper will sound once (Fig. 19).
The door will start to move and re-calculate force
margins. The door can move between the open and
close limit positions up to four (4) times (depending
on the position of the door and the power up
condition).
A single beep will be heard once the process is
complete.
Test the force again as per Steps 8.1 and 8.2.
WARNING: Doors requiring over 400N of force to
move must have PE Beams fi tted for safety.
Safety Obstruction Force
fi g 17
fi g 18
fi g 19

Owner Installation Instructions GDO-6v3 EasyRoller®
19
Step 10.4 - Code a Transmitter Button to
Enable Vacation Mode

Step 10.2 - Coding a Transmitter Button to
the Courtesy Light

Step 10.3 - Code a Transmitter Button for Pet
(Pedestrian) Mode

Step 10.1 - Code a Transmitter Button for
Door Operation

a.
b.
c.
d.
e.
a.
b
.
c.
d
.
Thetransmitter can be programmedto operate the
courtesy light on the opener independently of the door
moving.
a.
b
.
Press and hold LIGHT CODE button (Fig. 21).
Press one of the four buttons on the
transmitter for two (2) seconds, pause for two
(2) seconds, then press the same button again
for two (2) seconds. Release the LIGHT CODE
button.
Press the transmitter button to test.
c.
d
.
Press and hold the DOOR CODE button(Fig.20).
Press one of the four buttons on the
transmitter for two (2) seconds, pause for two
(2) seconds, then press the same button again
for two (2) seconds. Release the DOOR CODE
BUTTON.
Press the transmitter button to test.
Briefl y press the DOOR CODE button threetimes,
then press it again and hold (will beep four times on
fourth press (Fig. 22)).
Press one of the four buttons on the transmitter for
two (2) seconds, pause for two (2) seconds, then
press the same button again for two (2) seconds.
Release the DOOR CODE button.
Press the transmitter button to test.
To change the default pet (pedestrian) door opening
position, refer Step 17.
Theopenercan be programmed intoa“Vacation
Mode” where the opener will not respond to any
transmitter except the button of the transmitter that
was programmed for vacation mode.
a.
Briefl y press the DOOR CODE button once,
then
press it again and hold (will beep two times
on second press (Fig. 23)).
Press one of the four (4) buttons on the
transmitter for two (2) seconds, pause for
two (2) seconds, then press the same button
again for two (2) seconds.
Release DOOR CODE button.
Press and hold the transmitter button for six
(6) seconds to set Vacation Mode. The door
code LED will stay lit while Vacation Mode is
active.
To reset Vacation Mode, press the same
button for two seconds.
b.
c.
d
.
e.
Coding Transmitters
fi g 20
fi g 21
fi g 22
fi g 23

20
GDO-6v3 EasyRoller Owner Installation Instructions
®
fi g 24
fi g 25
fi g 26
Step 11 - Easy Access Transmitter
Coding

Step 12 - Remotely Coding Transmitters
Using this method, transmitters can be coded without
access to the opener’s control panel as long as a pre-
coded transmitter is available.
Step 10.5 - Code a Transmitter Button to
Enable AUX OUTPUT

(EAT)
a.
e.
b.
c.
d
.
a.
b
.
c.
d
.
a.
b
.
c.
d.
Press and hold theDOOR CODE button(Fig. 24).
Press the EAT’s button for two (2) seconds,
pause for two (2) seconds, then press the
button again for two (2) seconds (Fig. 25).
Release the DOOR CODE button.
Press the transmitter button to test.
Briefl y press the DOOR CODE button two(2)
times, then press it again and hold (will beep
three times on third press (Fig. 24)).
Press one of the four buttons on the
transmitter for two (2) seconds, pause for two
(2) seconds, then press the same button again
for two (2) seconds.
Release the DOOR CODE button.
Press the transmitter button to test.
Take any pre-coded transmitter. Press the button
for the function to be duplicated and release.
Using a small needle, press and hold fi rmly for (2)
two seconds through the Coding Hole (Fig. 26).
WITHIN 10 SECONDS, take the additional
transmitter you wish to code.
Decide which
button that you want to activate the function to
be duplicated (e.g. activate the door, or turn on
the courtesy light).
Hold the new transmitter’s button for two (2)
seconds, pause for two (2) seconds, hold again
for two (2) seconds and then release.
Wait for 10 seconds and then press the new
transmitter’s button to test.
IMPORTANT NOTE: The door or courtesy light
must activate when the steps below are
performed. This indicates that the pre-coded
transmitter is in range of the opener, and the
correct button has been pressed.
Coding Transmitters

Owner Installation Instructions GDO-6v3 EasyRoller®
21
fi g 27
Deleting Transmitter Codes

Code
Step 13.2 - Deleting All Transmitter Codes
Step 13.1 - Deleting a Stored Transmitter

c.
a.
b.
c.
d.
a.
b.
d.
Turn off power to the opener.
While switched off, press and hold the DOOR
CODE BUTTON (Fig. 27). Turn on the power
to the opener while holding this button.
The OPEN LIMIT, CLOSE LIMIT and DOOR
STATUS LED’s will illuminate for about fi ve
(5) seconds. These LED’s will turn off and the
CODING LED will illuminate.
Release the DOOR CODE BUTTON. All stored
codes will now be deleted.
Confi rm this by
coded
pressing buttons on any previously
transmitters - the opener should not respond.
Select the transmitteryou wantto delete.
Press and hold the DOOR CODE BUTTON
(Fig. 27).
Press the transmitter button you would like to
delete for two (2) seconds, pause for two (2)
seconds, press again for two (2) seconds and
then release.
Release the DOOR CODE BUTTON. The code
should now be deleted. Confi rm this by
pressing
the transmitter button - the function (e.g.
door opening) should not respond.

22
GDO-6v3 EasyRoller Owner Installation Instructions
®
PE Beams
Step 14 - Fitting the PE Beams (optional)
WARNING: When using Auto-Close Mode and PE
Beams, the doorway must be clear of all
obstructions and persons at all times. The location
of the beams and manner in which it is installed
might not give safety protection at all times. Check
to make sure that the height of the beam and type
used give maximum protection possible.
WARNING: Install the PE Beams as per diagram in
(Fig. 28). Tampering with PE Beams could result
in serious personal injury and/or property damage
and will void the warranty.
WARNING! Photo Electric Beams must be installed
if the closing force at the bottom edge of the door
exceeds 400N (40kg).
c.
a.
b.
Affi x the PE Beams in a strategic location within
the doorway. We recommend 150mm above the
fl oor
level and as close as possible to the door
opening, inside the garage.
Connect the wires from the PE wiring harness to
the terminal block (Fig. 28). The wiring diagram
is for Model PE2 (Order Code 90214).
Make sure that you are using the correct resistor
i.e. 2k2 ohms (Red Red Red Gold) and
connecting to number 2 (two) and 4 (four)
terminal on the PE- 2 receiver. Align the beams
correctly. Follow the manual supplied with the
PE Beams.
Accessories
fi g 28
RED
RED
RED
GOLD
PWR
PE
PE ( 0V )
GND
OSC
AUX OUT
BLACK
YELLOW
BLACK
YELLOW
RED
RED
BLACK
RED
BLACK
+ -
+ -
RESISTOR = 2K2
0.25 WATT
Receiver
Transmitter
Model PE-2

Owner Installation Instructions GDO-6v3 EasyRoller®
23
fi g 29
 Auto-Close

Step 15.1 - Setting Auto-Close Time
Step15 - SettingUpAuto-CloseMode
IMPORTANT NOTICE: It is compulsory to have PE
Beams installed when using Auto-Close mode.
c.
e.
a.
b
.
d.
Auto-Close mode is a function that automatically
closes the door a preset time after the PE Beams
recognise that a vehicle has left the garage.
The Auto-Close timer only starts after the PE
Beam’s path is broken. If the PE path is not
broken, the door will remain open until the path is
broken. If the opener incurs a physical obstruction
(i.e. not from the PE Beams) while closing the
door, it will re-open and not Auto- Close until the
PE Beam’s path is broken again.
Hold down the AUTO CLOSE TIME button
(Fig. 29). While holding in the AUTO CLOSE
TIME button, press the OPEN button - each
press will add one second to the Auto-Close
delay.
To decrease the delay time follow Step 15.1(a)
and press the CLOSE button - each press will
deduct one second from the Auto-Close delay.
Press the OPERATE button or transmitter to
open the door. When the door is fully opened
the
OPEN LIMIT LED will fl ash to indicate that
Auto-
Close mode is operational.
Break the PE Beam’s path momentarily to
initialise Auto-Close. When the door reaches
the fully opened position, the door will pause
for the set Auto-Close time and then close.

24
GDO-6v3 EasyRoller Owner Installation Instructions
®
fi g 30
fi g 31

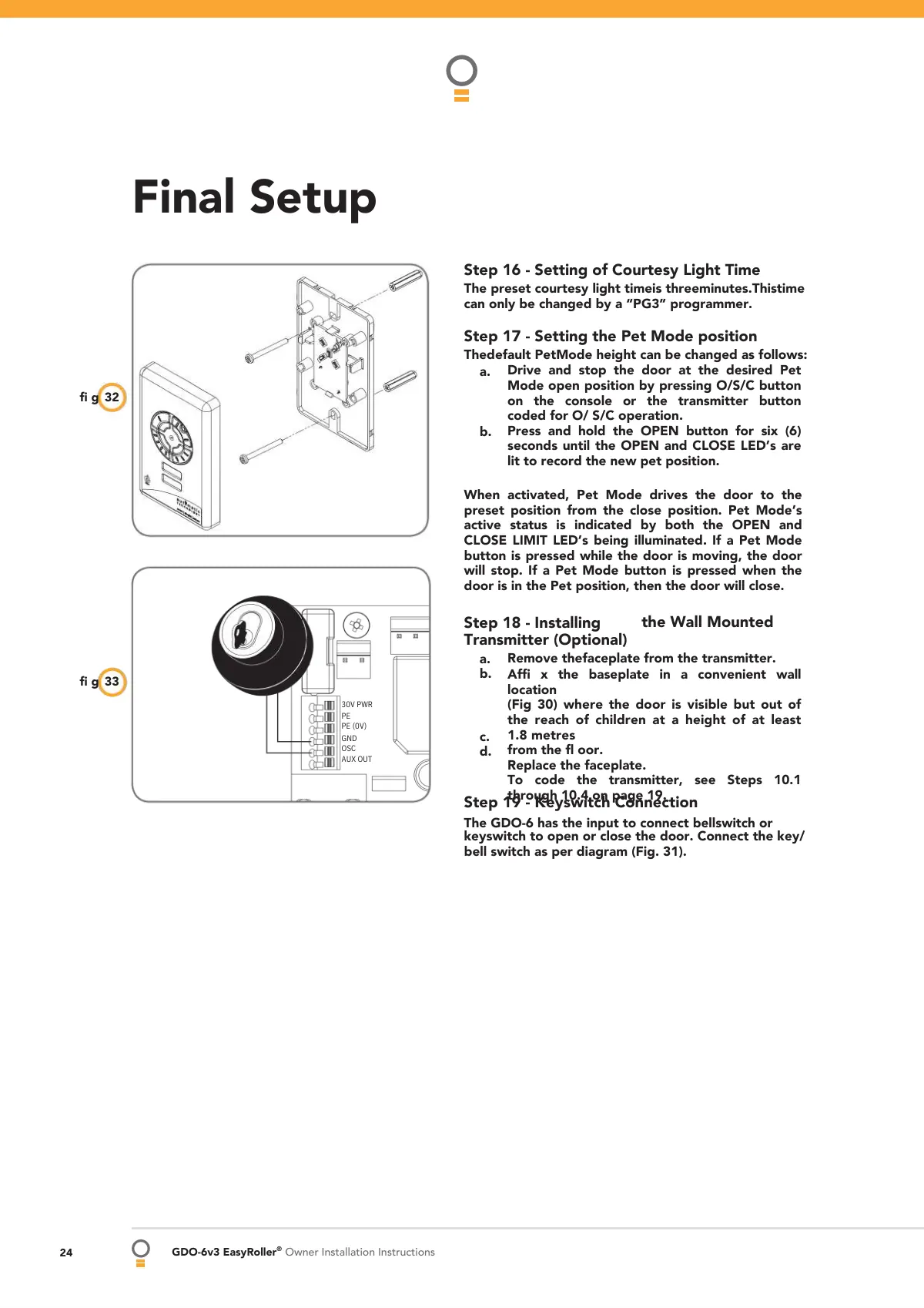

Final Setup
Step 18 - Installing
Transmitter (Optional)

Step 19 - Keyswitch Connection

Step 17 - Setting the Pet Mode position

a.
Step 16 - Setting of Courtesy Light Time

the Wall Mounted
a.
b.
c.
d.
The preset courtesy light timeis threeminutes.Thistime
can only be changed by a “PG3” programmer.
Remove thefaceplate from the transmitter.
Affi x the baseplate in a convenient wall
location
(Fig 30) where the door is visible but out of
the reach of children at a height of at least
1.8 metres
from the fl oor.
Replace the faceplate.
To code the transmitter, see Steps 10.1
through 10.4 on page 19.
TheGDO-6 has the input to connect bell switch or
keyswitch to open or close the door. Connect the
key/bell switch as per diagram (Fig. 31).
Thedefault Pet Mode height can be changed as follows:
Make sure the door is closed, then press and
hold the OPEN button for six (6) seconds until
you hear three beeps and the OPEN and
CLOSE
LED’s fl ash rapidly.
Press the OPEN or CLOSE button to move the
door to the desired Pet Mode open position.
Press the SET button to record the new
position.
b.
c.
When activated, Pet Mode drives the door to the
preset position from either above or below. Pet
Mode’s active status is indicated by both the OPEN
and CLOSE LIMIT LED’s being illuminated. If a Pet
Mode button is pressed while the door is moving, the
door will stop. If a Pet Mode button is pressed when
the door is in the Pet position, then the door will
close.
30V PWR
PE
PE (0V)
GND
OSC
AUX OUT

Owner Installation Instructions GDO-6v3 EasyRoller®
25
Final Setup

Step20 - AuxiliaryOutput
Step 21 - Reset all Factory Defaults

External
device
Alarm, Door
opener etc.
The auxiliaryoutput canbeused to control alarm or
another garage dooropener. A valid transmission from
the pre-coded transmitter will cause the auxiliary output
to pulse for approximately 1 (one) second. The maximum
DC voltage must not exceed 35 volts DC. Maximum
current must not exceed 80 ma.(Fig. 32).
a.
b.
c.
d.
Turn power to the openeroff.
Press and hold the SET Button (Fig 33).
Turn power on while holding the SET button.
Continue to hold until all LED’s are off.
This will not erase transmitter codes stored in
memory.
PWR
PE
PE ( 0V )
GND
OSC
AUX OUT
fi g 33
fi g 32

26
GDO-6v3 EasyRoller Owner Installation Instructions
®

(Fig. 35)

(Fig. 35)

(Fig. 35).
IMPORTANT WARNING: Do not connect battery
or solar panel polarity incorrectly - this will result in
serious damage to components.
red wire

SOLAR+

black wire
–SOLAR
(Fig. 36)
WARNING: During Step 22.3 the opener will
become active.
WARNING: Do not connect the batteries until
after Step 22.2.
Step 22.2 - Connect the Solar Panel

Step 22.1 - Mount the Charger Board
1.
2.
3.

Step 22.3 - Mount & Connect the Battery

Step 22.4 - Re-setup and Test the Opener

4.
5.
6.
7.
1.
2.
3.
1
.
2
.3.
4.
5.
6.
1.
2.
Setup travel limits andcodetransmitters as per the
GDO-6 instruction manual.
Press either the OPERATE button, or use a
transmitter to operate the opener.
Mount the solarpanelas described in the
SmartSolar™ Instruction Manual.
Feed the Solar Panel’s cable through the black
grommet on the chassis.
Connect the
totheChargerBoard’s
“
“
” connector, andthe
tothe
” connector
.
Mount the Battery Boxclosetotheopener.
Feed the 2-core 18awg gauge cable (supplied)
through the Battery Box’s grommet.
Connect the red wire to the Battery Box’s “+”
terminal, and the black wire to the “–” terminal
(Fig. 37).
Feed the other end of the battery cable through
the drive unit’s black grommet.
Connect the red wire to the Charger Board’s
“BAT+” connector, and the black wire to the “–
BAT” connector (Fig. 37).
Refi t the timing cover, main cover and light
diffuser.
Unplug the drive unitfrom mains power.
Disengage motor using manual release cord.
Remove the main cover, timing cover and light
diffuser. Then remove the transformer, EMC
board and mains power cable.
Fix the Charger Board under the timing cover
using four (4) M4x8 screws (Fig. 34).
Feed the four wire cable through the opening,
then
connect the three wire harness(red/yellow/black) into
the control board’s “SBY-3”connector
.
Plug the one wire harness(white)into thecontrol
board’s “24vac in” connector
.
Plug the solar shunt(supplied)onto thecontrol
board’s “J13” connector
SmartSolar™ Installation
Fig 34
Fig 35
Fig 36
Fig 37
Red Wire
Black Wire
B
R
la
c
e
k
F
F
r
r
o
o
m m
S
S
o
o
l
l
a
a
r
d
r
To
control
Board
JP1 Solar
Shunt

Owner Installation Instructions GDO-6v3 EasyRoller®
27
Battery Backup Kit Installation
Step 23.1 - Connect the Battery Backup Kit

Step 23.2 - Testing the Battery Backup Kit.
a.

i.
j.
a.
b.
c.
d.
e.
f.
g
.
h.
Battery harness
Cable clamp
Taptite screw M4x10
Battery backup
Control board
DCB-05
SBY-3
Turnoff power to the opener and disengage
motor.
Remove timing cover and light diffuser.
Remove cable clamp and screw (Fig. 38).
Retain cable clamp for later use.
Mount the SBY-3 Charger Board on base and
secure with four (4) Taptite ‘P’ M4 x 8 screws.
Secure lower left corner with cable clamp
holding brown transformer wires.
Feed 4-Wire harness around timing assembly,
through opening and plug into control
board’s SBY-3 connector (Fig. 38).
Remove breakaway slot on timing cover.
Feed 2-wire battery harness through slot and
replace timing cover and secure in place with
screws.
Mount Battery Backup Kit onto support
chassis
and secure right side screw fi rst (charger
board
side).
Position 2-wire battery harness neatly and
secure left side of battery kit with cable
clamp.
k.
l.
b.
c.
d.
Timing cover
Breakaway slot on the
timing cover and feed the
battery harness through
the slot
SBY-3 Charger board
Connect battery harness together
.
Reconnect power and re-engage the motor.
Press either the OPERATEbuttonortransmitter
button to activate the door.
Whilst the door is in motion disconnect mains
power. When mains power is cut, the Battery
Backup Kit should respond to the shut down.
The door should continue operating as
normal.
Press OPERATE or a transmitter button to
activate the door.
Whilst door is in motion, re-connect power.
The door should complete the cycle as
normal. Unplug the drive unit from mains
power.
NOTE: Wait
travel.
for the door to complete its
WARNING: After Step 23.1(k) the opener may
become active (even when power is off). This is
a result of a residual charge in the batteries.
(Fig.38)
Fig 38

28
GDO-6v3 EasyRoller Owner Installation Instructions
®
Parameters

Door Status Indicators
Door Opener State
Open
Close
Opening
Closing
Door travel stopped
Door
obstructed
when
opening
Door
obstructed
when
closing
Opener
overloaded
Door in open position with
Auto-
Close mode selected
Pet Mode Engaged
Mains power interrupted
OPEN LED (Green)
On
CLOSE LED (Red)
Beeper
Flashing
Flashin
g
Flashin
g
On
Rapid fl ashes
Alternating fl ashes
One second fl ashes
On
On
Flashin
g
Flashin
gFlashing
Alternating fl ashes
Beeps as door moves

Owner Installation Instructions GDO-6v3 EasyRoller®
29
Parameters

Button Functions
Buttons
OPERATE
DOOR CODE
Function
Opens/Stops/Closes the door
Codes a transmitter button for operate, vacation
and pet functions
Codes a transmitter button for light function
Increases the obstruction force margin setting
Decreases the obstruction force margin setting
Resets the factory default force margin settings
Increases the Auto-Close delay time
Decreases the Auto-Close delay time
Resets the factory default Auto-Close delay time
Clears the door limits set positions. Limits then
need to be reset
Enters pet (pedestrian) position mode
Deletes control parameters excluding transmitter
storage memory
Deletes all transmitter storage memory
LIGHT CODE
FORCE MARGIN SET & OPEN
FORCE MARGIN SET & CLOSE
FORCE MARGIN SET (then) SET
AUTO CLOSE TIME (then) OPEN
AUTO CLOSE TIME (then) CLOSE
AUTO CLOSE TIME (then) SET
CLOSE (for 6 secs.)
SET & CLOSE (for 2 secs.)
SET (then power on) & hold until all LED’s are off
DOOR CODE (then power on) & hold until all LED’s
are off
SET & DOOR CODE (the power on) and hold until all
LED’s are off
SET
Deletes all control parameters and transmitter
storage memory.
Re-initialises the Opener to re-calculate force
margin

30
GDO-6v3 EasyRoller Owner Installation Instructions
®
Technical Specifi cations
Factory Default Settings
NOTE:
1. The door must be well balanced. A person should be able to lift the door up manually with very little effort in
Receiver type
Receiver code storage capacity
Transmitter frequency
Coding type
Number of code combinations
Code generation
Courtesy light
Controller fuse
Default
25 secs
3 mins
8
0 secs
Step
-
10 secs
1
1 secs
TrioCode™ type
14 X 4 button Transmitter Codes
TrioCode™ type
Code hopping
Over 4.29 billion random codes
Non-linear encryption algorithm
Festoon Type - 15W 24VD.C.
10A slow blow
Maximum
-
10 mins
20
4 mins
Opener Limits Travel
Power supply
Standby power
Motor power
Motor type
Controller Voltage
Maximum door opening:
Maximum motor run time
Courtesy light time
Obstruction force margin
Auto close time
Width:
Height:
Weight:
230V - 240V A.C. 50Hz
1.8 Watts
100 Watts
24VD.C. Permanent Magnet
24VD.C.
5500mm
3000mm
100kg
3.0 turns of Door Drum
Wheel
case of an emergency.
2. Intermittent operations may occur in areas which experience very strong winds. Strong wind puts extra pressure
on the door and tracks which may in turn trigger the safety obstruction detection system intermittently.
Default Settings & Specifi cations

Owner Installation Instructions GDO-6v3 EasyRoller®
31
Symptom
Door will not operate
PLEASE NOTE:

Possible cause
Mains power not switched on.
Door is obstructed.
Door is locked or motor jammed.
Door tracks/hardware damaged.
Remedy
Switch on mains power.
Remove obstruction.
Unlock door or remove jam.
Door requires service/repair by
qualifi ed technician.
Turn off “vacation mode”.
Increase force margin setting
See page 18 or re-calculate force
margin.
Remove obstruction.
Auto close not working
Door will not close fully.
Door will not open fully.
Courtesy light not working
Globe keeps blowing
Door starts to close but
automatically reverses to open
position
Door operates from drive unit
(OPERATE) button but not from
transmitter*
See note
The opener is in “vacation mode”
Adverse weather conditions (wind
or cold) causing door to stiffen and
become tight in the tracks.
Possible obstruction in the
doorway.
Transmitter code not stored in
memory.
Flat battery.
Broken battery lead inside
transmitter
Door limits positions need to be
reset.
Door limits positions need to be
reset.
Globe down
Incorrect globe voltage - must be
220V AC
PE Beam or wiring faulty.
PE Beam not aligned correctly.
PE Beam is obstructed.
Door obstructed when closing.
Auto-Close time not set.
Auto-Close mode not set
Code transmitter in to openers
memory. Refer step 10.1 on
page 19
Replace battery
Send transmitter to installer or
Automatic
Technology
for
repair
Reset limits positions. Step 7.3,
page 16.
Reset limits positions. Step 7.3,
page 16.
Replace globe
Replace globe
Repair PE Beam or replace
wiring. Re-align optics.
Remove obstruction from path
of
PE.
Remove obstruction.
See Step 15 on page 23.
See Step 15 on page 23.
Someareas may be prone to excessive radio interference brought on by devices such as cordless telephones,
wireless stereo headphones and baby monitors. It is possible that these devices could cause a degree of
interference such as to greatly reduce the range of the transmitter. In such an instance, please contact your
Automatic Technology dealer for an alternative frequency replacement kit. As this is not a warrantable situation
but an environmental issue, charges may apply for the change over.
Troubleshooting

32
GDO-6v3 EasyRoller Owner Installation Instructions
®
Monthly
•
Maintenance
Whilst your opener does not require any
periodic
maintenance, the door that it is fi tted to, does.
Your garage door is a large, heavy, moving
object and should be tested regularly to ensure
it is in good condition. A poorly maintained
door could cause fatal or serious injuries or
serious damage to property.
Service Record

Yearly
Automatic Technology
To ensure a long and trouble free life for your opener
the following is recommended:
Disengage
the
opener
and
manually
operate the door: The door must be
smooth to operate by hand. An operating
force on the bottom rail should not exceed
150N (15kg) force.
Each month check that the opener reverses
when the door contacts a 40mm high
object
placed on the fl oor (AS3350).
•
•
NOTE: If the door does not operate smoothly, call
your installer.
Recordanymaintenance in the following table to assist in any warranty service.
Date
Service by
Signature
Invoice No.
Amount
suggests you contact
installer to perform an annual door service.
your
CAUTION: Frequently examine door, particularly
cables, springs and mountings for signs of wear,
damage or imbalance. Do not use if repair
or adjustment is needed since a fault in the
installation or an incorrectly balanced door may
cause injury. (AS3350)
Adjustments should only be carried out by
experienced persons, as this function can
be dangerous if not performed under strict safety
procedures.
WARNING! Failure to maintain your garage
door may void the warranty on your garage door
opener.
Maintenance

Owner Installation Instructions GDO-6v3 EasyRoller®
33
Spare Parts
IMAGE SHOWS AUSTALIAN PLUG

34
GDO-6v3 EasyRoller Owner Installation Instructions
®

Owner Installation Instructions GDO-6v3 EasyRoller®
35
Warranty and Exclusion of Liability
1. This warranty is an addition to any non-excludable conditions or warranties that are implied into this contract
1. One (1) cycle = one (1) open and one (1) close action of the door or gate.
2. This warranty is to be read in conjunction with the owner’s copy of the installation instruction manual.
3 *The door should be balanced in such a way that the user manually is able to open or close the door without using
force not greater than 150N (15kg ) although a greater force may be required for the start of the movement.
by relevant statute, including the Trade Practices Act 1974 (Cwth).
2. Subject to all of the matters set out below, Automatic Technology Australia Pty Ltd (“ATA”) warrants:


(a) roll up door opener drive units for twenty four (24) months or 5000 cycles, whichever occurs fi rst; and
(b) all components and accessories for twelve (12) months, from the date of purchase (specifi ed in the sales
docket receipt) as free of any defects in material and workmanship.
3. This warranty applies only where the purchaser:



(a) immediately notifi es ATA or the retailer of the alleged defect;
(b) returns the product to the retailer; and
(c) presents the relevant sales docket and this warranty document to the retailer to confi rm the date
of purchase.
4. Except for this warranty, ATA gives no warranties of any kind whatsoever (whether express or implied),
in relation to the product, and all warranties of whatsoever kind relating to the product are, to the extent
permissible by statute, hereby excluded.
5. To the extent permissible by statute, ATA disclaims any liability of whatsoever nature in respect of any claim
or demand for loss or damage which arises out of:



















(a) accidental damage to or normal wear and tear to the product or to the product’s components;
(b) any cost relating to damage resulting from wear and tear;
(c) blown fuses, loss or damage caused by electrical surges, power surges or power spikes;
(d) loss or damage due to theft, fi re, fl ood, rain, water, lightning, storms or any other acts of God;
(e) maximum continuous operating time exceeding one (1) minute in ten (10);
(f) maximum operating force exceeding *20kg (200N) when moving the door manually to the open or
closed position;
(g) door surface area and/or weight exceeding 16.5m and 100kg respectively;
2
(h) door not in safe and correct working order and condition;
(i) evidence of unauthorised repairs;
(j) any cost relating to damage caused by misuse, negligence or failure to maintain the equipment in a
proper working order as per clauses (d) through (h);
(k) installation, adjustment or use which is not in accordance with the instructions set out in installation
instruction manual
(l) attempted or complete modifi cation or repairs to the product carried out by a person who is not
authorised or has not been trained by ATA to carry out such modifi cation or repairs;
(m) faulty or unsuitable wiring of structure to which the product is fi xed or connected;
(n) radio (including citizen band transmission) or any electrical interference;
(o) damage caused by insects;
(p) loss or damage to any property whatsoever or any loss or expense whatsoever resulting or arising there
from or any consequential loss;
(q) any cost or expense arising due to manufacturer recall of any product;
(r) any cost or expense due to negligence of the approved service provider;
(s) installation of a residential garage door opener in a commercial or industrial situation or a non-single
residential dwelling.
6. ATA’s liability under this warranty is limited, at ATA’s absolute option, to replacing or repairing the product
which ATA, in its unfettered opinion, considers to be defective either in material and/or workmanship or to
credit the dealer with the price at which the product was purchased by the dealer.
7. This warranty does not extend to cover labour for installation.
8. This warranty is limited to Return-to-Base (RTB) repair and does not cover labour for on-site attendance.
9. This warranty is void if the Product is not returned to the manufacturer in original or suitably secure packaging.
10. This warranty is only applicable for repairs to the product carried out within Australia.
11. This warranty does not cover consumable items including globes, batteries and fuses.
12. This warranty is not transferable.
13. Where the Product is retailed by any person other than ATA, except for the warranty set out above, such
person has no authority from ATA to give any warranty or guarantee on ATA’s behalf in addition to the
warranty set out above.
NOTES:

GARAGE DOOR OPENERS | GATE OPENERS | REMOTE CONTROL ACCESS SOLUTIONS
© February 2009 Automatic Technology (Australia) Pty Ltd. All rights reserved. TrioCode™, SmartSolar™ and
EasyRoller are trademarks of Automatic Technology (Australia) Pty Ltd. No part of this document may be
reproduced without prior
®
permission. In an ongoing commitment to product quality we reserve the right to change specifi cation without notice.
E&OE.
Automatic Technololgy (Australia) Pty Ltd

ABN 11 007 125 368
 (International Enquiries Only)
6-8 Fiveways Boulevard
Keysborough, Victoria, 3173, Australia
P 1300 133 944

+61 2 9722 5666
E
www.ata-aust.com.au
enquiries@aggdoors.com.au

GARAGE DOOR OPENER MANUALS
ATA GDO-6v3 Manual v2.01
ATA
Original manufacturer documentation follows
www.aggdoors.com.au
(03) 8789 1342
enquiries@aggdoors.com.au

GDO-6v3 EasyRoller®
Roll Up Garage Door Opener
INSTALLATION INSTRUCTIONS | OWNERS COPY
Featuring
Technology
TrioCode™
Part # 13236 (Manual) v2.01

2
GDO-6v3 EasyRoller Owner Installation Instructions
®
WARNING: It is vital for the safety of people to follow
all instructions. Failure to comply with the installation
instructions and the safety warnings may result in
serious personal injury and/or property and opener
damage. Please save these instructions for future
reference.
Automatic Technology (Australia) Pty Ltd to the extent that such may be lawfullyexcluded hereby expressly disclaims all

conditions or warranties, statutory or otherwise which may be implied by laws as conditions or warranties of purchase of
an Automatic Technology (Australia) Pty Ltd Roll Up Door Opener. Automatic Technology (Australia) Pty Ltd hereby
further expressly excludes all or any liability for any injury, damage, cost, expense or claim whatsoever suffered by any
person as a result whether directly or indirectly from failure to install the Automatic Technology (Australia) Pty Ltd Roll Up
Door Opener in accordance with these installation instructions.

Owner Installation Instructions GDO-6v3 EasyRoller®
3
Important Safety Instructions
Features
Operating Controls
Package Contents
Installation
Programming the Opener
Safety Obstruction Force
Coding Transmitters
Deleting Transmitter Codes
Accessories
Photo Electric Beam
Auto-Close
Final Setup
Setting of Courtesy Light Time
Setting the Pet Mode Position
Wall Transmitter Installation
Keyswitch Connection
Auxilary Output
Reset all Factory Defaults
SmartSolar™ Installation
Battery Backup Kit Installation
Parameters
Door Status Indicators
Button Functions
Default Settings & Specifi cations
Troubleshooting
Maintenance
Spare Parts
Warranty
4
6
8
10
11
15
17
19
21
22
22
23
24
24
24
24
24
25
25
26
27
28
28
29
30
31
32
33
35
GDO-6v3 EasyRoller®
Roll Up Garage Door Opener

4
GDO-6v3 EasyRoller Owner Installation Instructions
®
CAUTION: If your garage has no pedestrian entrance door, an emergency access device should be installed.
This accessory allows manual operation of the garage door from outside in case of power failure.
For ADDITIONAL SAFETY protection we STRONGLY recommend the fi tting of a Photo Electric (PE)
Beam. In most countries, PE Beams are mandatory on all garage doors fi tted with automatic openers.
For a small additional outlay, Automatic Technology recommends that Photo Electric Beams be
installed with the automatic opener ensuring additional safety and peace of mind.
DO NOT operate the opener unless the garage door is in full view and free from objects such
as cars and children/people. Make sure that the door has fi nished moving before entering or
leaving the garage.
DO NOT operate the opener when children/people are near the door. Children must be
supervised at all times when the EasyRoller® is in use. Serious personal injury and/or
property damage can result from failure to follow this warning.
DO NOT allow children to operate the EasyRoller®. Serious personal injury and/or
property damage can result from failure to follow this warning.
Photo Electric Beams must be installed where the closing force as measured
on the bottom of the door is more than 400N (40kgf).
Regularly check to make sure that the Safety Obstruction Force is working
correctly, and is tested and set as per page 17 of this manual. Failure to
follow these instructions could result in serious personal injury and/or
property damage. This test must be repeated at regular intervals and
the necessary adjustments made as required.
DO NOT disengage the door opener to manual operation with
children/people or any other objects including motor vehicles
within the doorway.
The door opener is not intended for use by young children
or infi rm persons without adequate supervision. Children
should be supervised to ensure that they do not play
with the remote transmitters or the opener.
Keep hands and loose clothing clear of the door
and door opener at all times.
WARNING: It is vital for the safety of persons to follow
all instructions. Failure to comply with the following
Safety Instructions may result in serious personal injury
and/or property damage.
Important Safety Instructions

Owner Installation Instructions GDO-6v3 EasyRoller®
5
The unit should be installed so that it is protected from the elements. It should not be exposed to water or rain.
It is not to be immersed in water or sprayed directly by a hose or other device.
The garage door must be well balanced. Sticking or binding doors must be repaired by a qualifi ed garage
door installer prior to installation of the opener.
Frequently examine the installation, in particular cables, springs and mountings for signs of wear, damage
or imbalance. DO NOT use if repair or adjustment is needed since a fault in the installation or an
incorrectly balanced door may cause injury. DO NOT attempt to repair the door yourself as hardware
is under extreme tension.
Remove or disengage all garage door locks and mechanisms prior to installation of the opener.
Connect the opener to a properly earthed general purpose 220V mains power outlet installed
by a qualifi ed electrical contractor.
Disconnect the power cord from mains power before making any repairs or removing
covers. Only experienced service personnel should remove covers from the opener.
When using Auto-Close mode, a photo electric beam must be fi tted correctly and
tested for operation at regular intervals. Extreme caution is recommended when
using Auto-Close mode. All safety rules must be followed.
In order for the EasyRoller® to sense an object obstructing the door way,
some force must be exerted on the object. As a result the object, door and/
or person may suffer damage or injury.
If the power supply cord is damaged, it must be replaced by an
Automatic Technology service agent or suitably qualifi ed person.
Make sure that the door is fully open before driving in or out of the
garage and fully closed before leaving the driveway.
Make sure that remote transmitters are kept out of reach of
children.
Install the (optional) wall switch or (optional) wall
mounted transmitter in a location where the garage
door is visible, but out of the reach of children at a
height of at least 1.5 metres from the fl oor.
Important Safety Instructions

6
GDO-6v3 EasyRoller Owner Installation Instructions
®
Operation

Auto courtesy light

TrioCode™ Code Hopping Technology

ISS (intelligent safety obstruction system)

ALPS (Automatic Limits Positioning System)

Toopenor close the door simply press a button on a TrioCode™ handheld
transmitter, a wall mounted transmitter, or optional wall switch for two seconds.
During open and close cycles the door can be stopped by pressing the button
again. The next actuation will move the door in the opposite direction.
ALPS does away with manual adjustmentofthedoor’slimits position using mechanical
parts, such as cams and microswitches. During installation the handheld transmitter can be
programmed to set the door limits positions.
The courtesy lightcomeson automatically for three minutes whenever the door is activated. The light can also
be operated independently of the door by coding a dedicated button on a transmitter.
Whilethe door is performing a close cycle, should it hit an obstacle or be restricted in some manner, it
will automatically reverse. The amount of force the door should encounter before reversing is automatically
adjusted by the doors control system during the initial installation of the automatic door opener. The door will
also stop if restricted whilst opening. The Safety Obstruction Force should be checked monthly.
Everytime aTrioCode™ transmitteris used, a new security code is randomly
generated from over 4.29 billion possibilities. This greatly enhances the security of
the system and makes “code grabbing” a thing of the past.
These transmitters also overcome interference issues by simultaneously sending a
signal over three slightly different frequencies. Even if two of the three signals are
jammed, the system will still work.
Features
Thank
you
for
purchasing
the
Automatic
Technology EasyRoller® Automatic Garage Door
Opener. Designed by our renowned engineers to
suit Vertical Operating Continuous Curtain Roll up
doors, the EasyRoller® will provide years of
smart, simple
& secure convenience to your home.

Owner Installation Instructions GDO-6v3 EasyRoller®
7
Manual operation
The opener is equipped with a unique manual disengaging device. If the power to the opener is
disrupted, the door can be put into manual mode by pulling down on the string handle on an angle
towards the door. This allows for manual operation of the door. To re-engage the opener, pull the
string handle away from the door.
Easy Access Transmitter

Auto-Close mode
Vacation mode

Photo Electric (PE) Beam (optional)

Pet/Pedestrian mode
SmartSolar™ and Battery Backup Compatibility (optional)

TheopenerhasaninputtoconnectaPEBeamfor extra safety and use of the Auto-Close mode.
Insidethemanualreleasehandle is a transmitter designed to be in easy reach so that the garage door can
be operated without having to stretch to reach the operate button on the control panel.
The opener can be programmed to automatically close after an open cycle. The Auto-Close
time is adjustable. It is compulsory to install a PE Beam if this mode is selected, otherwise the
door may cause personal injury or damage to property.
Ahandheld transmitter can be programmed to lock and unlock all other
transmitters that have been programmed into the openers’ memory. The vacation
mode can be used when the door is left idle for long periods of time.
The transmitter can be programmed to open the door to an adjustable partial height
so that the family pet can enter and exit the garage at any time. You may also wish to
open the door to a height suitable for pedestrian access.
The opener can be fi ttedwith a SmartSolar™ or Battery Backup kit for operation in
the event of a power outage, or where mains power access is not available. NOTE: If
the door is the only entrance to the garage, and a battery backup kit is not fi tted,
a keyed cable release should be fi tted externally to the garage.

8
GDO-6v3 EasyRoller Owner Installation Instructions
®
Operating Controls

TERMINAL BLOCK
24V (not fi ltered or regulated) PWR is used to power photo electric beam.
PE (Input) for photo electric beam.
PE (-) is used to power photo electric beam.
GND is used with OSC input or AUX output
O/S/C INPUT is used for the connection of a wired switch (momentary contact). This switch
can then be used to open, stop or close the door. Install the wall switch in a location where
the switch is out of reach of children and the garage door is visible.
AUX (output) can be used to control an alarm system.
LIGHT CODE button (White) is used for storing or erasing the transmitter button (code) you wish to use
to switch the courtesy light on the opener on or off.
CODING LED (Red) light fl ashes when a code is being stored or when a transmitter button is pressed.
DOOR CODE BUTTON (Blue) is used for storing or erasing transmitter buttons for door operation.
DOOR STATUS LED (Yellow)
CLOSE button (Red) is used during installation to help set the close limit position. Pressing and holding
this button will move the door in the close direction. Movement stops when the button is released.
NOTE: The safety obstruction detection is inoperable when the CLOSE button is used to move door.
CLOSE LIMIT LED (Red) the LED is very helpful during installation. It illuminates and fl ashes when the
door is closing and remains steady on when the close limit position has been reached.
AUTO CLOSE TIME button (White) is used to adjust the Auto-Close time. Pressing the open button
whilst pressing the Auto Close button increases length of operation. Each press will increase the
time by 5 seconds. Pressing the close button will decrease the time.
FORCE MARGIN SET button. The obstruction force margin is set automatically during installation. The
margin can be adjusted manually using the Force Margin Set button (White). Holding the Force
Margin Set button and pressing OPEN or CLOSE buttons will increase or decrease the amount of
force. The Force Margin Set should only be used if environmental factors (wind, etc.) affect the door’s
operation.
OPEN LIMIT LED (Green) the LED is very helpful during installation. It illuminates and fl ashes when the
door is opening and remains steady on when the open limit position has been reached.
OPEN button (Green) is used during installation to help set the open limit position. Pressing and holding
this button will move the door in the open direction, releasing stops the door.
NOTE: The safety obstruction detection is inoperable when the OPEN button is used to move door.
OPERATE button (Yellow) is used during installation to test the open, stop and close cycles for the
opener. The opener has to be initialised by the Reset button to make the O/S/C button operable.
SET button (Yellow) is used during the installation phase together with the Open and Close buttons to set
the door limit positions. The Set button is also used to re-initialize the Opener.
ENGAGE/DISENGAGEMENT CORD enables manual door operation, especially useful during
power failures. At the cord’s end is the EASY ACCESS TRANSMITTER; a wireless door controller.
01
02
03
04
05
06
07
08
09
10
11
12
13
14

PWR
PE
PE-
GND
OSC
AUX
 Owner Installation Instructions GDO-6v3 EasyRoller®
9
01
15
16
17
13
12
02
04
06
03
05
11
10
07
09
08
15
14
17
16
JP1 SOLAR CONNECTOR the shunt must be fi tted for solar operation.
PROG INPUT is used to connect the Automatic Technology Handheld Programmer for editing control
and receiver functions, accessing diagnostic tools, and activating special features and operating modes.
SBY-3 CONNECTOR is used to connect both Battery Backup Kits and SmartSolar™ kits.

10
GDO-6v3 EasyRoller Owner Installation Instructions
®
Package Contents
1
2
2
2
2
2
2
1
1

Weight Bar
TrioCode™ Keyring Transmitter Pack
GDO-6v3Easyroller®driveunit w/EasyAccessTransmitter
TrioCode™ keyring transmitters
Pan head screw M4x50mm (not included in some models)
Nilock Hex nut M4 (not included in some models)
Flat washer I.D. 3/16 x 1/2 (not included in some models)
Spring washer I.D. 5 (not included in some models)
Locking bar covers
Weight bar (not included in some models)
Installation Instructions
Locking Bar Covers
Drive Unit

Owner Installation Instructions GDO-6v3 EasyRoller®
11
Installation
Pre-Installation Requirements
IMPORTANT SAFETY INSTRUCTIONS FOR INSTALLATION
Warning: Incorrect installation can lead to severe injury.
Follow ALL installation instructions.
fi g 01
fi g 02
fi g01a
Position
The opener can be installed on either the right- or left
hand side of the door (when viewed from inside the
garage). The opener is factory set for right hand side
installation.
Sideroom

Power Supply

Door Operation

Unsuitable Door Types

Properlyearthed3pin single-phase power is required.
This opener must be installed in a dry position that is
protected from the weather. Moisture or corrosion
damage is not covered by the Warranty.
The fi ttingofanopenertodoors with removable mullions is
not recommended.
Theminimumsideroom required from the edge of the door
curtain is 40mm to the inside of the door bracket, and 85mm
to the wall (Fig. 01). If a Battery Backup Kit is to be fi tted, at
least 135mm to the bracket is required (Fig. 01a).
The recommended sideroom from the edge of the
door curtain is 95mm to the inside of the door
bracket, and 135mm to the wall (Fig. 02).
NOTE: Door Axle Diameter must not exceed 35mm.
Thedoor must be in good operating condition. The
maximum effort to move the door up or down, from
stationary, should not exceed 150 Newtons (15kg
force) at the bottom rail. The recommended force is
70N (7kg) for manual operation.
Lift the door to about halfway. When released, the
door should stay in place supported entirely by its
springs. Raise and lower the door to check for
binding or sticking.
The door may need to be serviced to meet these
requirements – refer to the door manufacturer’s
servicing instructions or contact an authorised dealer.
IMPORTANT NOTE - The opener should not be
installed on any door incorporating a wicket door.
WARNING! A portable power generator is not
recommended. The opener may appear to
malfunction due to spikes, surges and fl uctuations
in
the generated voltage.
135

12
GDO-6v3 EasyRoller Owner Installation Instructions
®
Installation
Step 1 - Preparation
a.

Step 2 - Fit the Weight Bar
Theweightbarmust befittedtothe bottom-centre for
proper operation of theopener.
b.
c.
d.

a.
b.

Remove the door handle
Fit the weight bar and refi t the handle using the
new fasteners provided
.
Ifthedoordoesnothavea handle:
Checkthedoor’s operation:
i.
The door must travel smoothly and be
easy to operate by hand.
Operating force on the bottom rail
should be approximately 70N (7kgs)
force.
Adjust
any
tight
or
twisted
guides/tracks Clean the guides if there
is any oil or wax present using a
suitable white spirit. The only lubricant
suitable for use on door guides is silicon
spray. DO NOT use WD- 40, RP-7,
petroleum grease, or similar.
ii.
iii
.
iv
.
Install the locking bar covers if there are locking bar
holes in the guides.
Affi x the warning labels supplied with this opener in
a prominent place where they are clearly visible.
Choose the side where the opener will be installed,
ensuring there is suffi cient sideroom.

a.
Locate the centre of the door at the bottom rail
.
b.
Place the weight bar at this point (there is a
centreline marked on the weight bar) and mark
the two positions where the fasteners will go.
Drill the two 4.5mm holes in the door and fi t the
weight bar using the new fasteners provided.
(Fig.06).
c.
Check that the door is still balanced and smooth to
operate. If it is not, then the door may require
servicing (refer to door manufacturer’s instructions).
Ifthedoorhasa handle:
(Fig.04)
(Fig.05)
WARNING! The door and its springs are under
signifi cant tension. Adjustments should only
be carried out by experienced persons, as this
function can be dangerous if not performed under
strict safety procedures.
(Fig.03)
IMPORTANT NOTE - Do not lock your door with
the locking bars after installing the opener.
Remove or disable the lock using wire or cable
ties. Security is not affected as the opener has an
inbuilt locking facility.
fi g 03
fi g 05
fi g 06
fi g 04

Owner Installation Instructions GDO-6v3 EasyRoller®
13
Installation

fi g 07
fi g 08
Step 4 - Fitting the opener

Step3 - PintheDoorCurtain
a.
e.
f.
b.
d.
At the end where the opener will be fi tted, use
masking tape or pen to mark the position of
the U-bolt in the door bracket and the
position of the door bracket on the wall to
assist in reassembling. Remove the U-bolt (or
bolts) and saddle from the door bracket.
Remove the door bracket allowing the door to
rest
on the support
Atthe end opposite towhere the opener will be
fi tted, check that the U-bolt is tightened
securely.
Open the door completely and tie safety ropes
around the door roll approximately 300mm from
each end. Do not tie the ropes too tight as
damage to the curtain may ensue.
At the end where the opener is to be fi tted,
support
the door with a ladder or suitable prop:
Pinning thedoor curtain tothe doordrummaintains
security when the opener closes andlocks.
a.
b
.
c.
Fully close the door.
Mark drill holes at both ends of the drum (Fig.
07). Drill holes using 3.2mm (1/8”) drill bit. Open
the door slightly for easier access, if necessary.
Fit a 10 x 32mm screw and washer to each end.
This screw should be positioned as low as
possible, but make sure that it does not alter the
curtain’s normal approach to the guide (lead-in
angle).
d.
NOTE: Make sure that the screws do not project into the
area where the internal gear will fi t.
(Fig. 08).
NOTE - For minimum sideroom installations the
door may have to be taken down.
WARNING! The opener must not be used with a
door incorporating a wicket door.
WARNING! Make sure the support is snug under
the door, stable and will not move.
Door drum
Pin Points
U-bolt
Bracket

14
GDO-6v3 EasyRoller Owner Installation Instructions
®
Step 5 - Mounting the Opener

a.
Iftheinternal gear does not rotate freely, switch the
opener
to
manual
by
pulling
the
disengagement handle down (there will be a
click), so that the ring gear can be rotated by
hand.
Slide the opener over the door axle and into
the drum of the door (Fig. 09).
Ensure the internal gear is pushed in as far as
possible (without interfering with the door
curtain) and that one of the door drum’s wheel
spokes is completely between the opener’s
drive forks. Re-attach the door bracket using
your reference marks as a guide and tighten
the bolts. Ensure that the slots in the
mounting bracket of the opener align with the
slots in the door bracket, otherwise the door
bracket may have to be relocated (Fig. 10).
b.
c.
d.
NOTE: If the bracket cannot be relocated, the opener
may be fi tted onto the axle using the opener’s saddle
and U-bolt as follows:
i.
Using your reference marks as a guide,
sit the opener on the door mounting
bracket and secure with the opener’s
U-
bolt and saddle and tighten fi rmly.
Adjust the door position (if necessary)
on the brackets so that the door feeds
smoothly into the guides. Make sure
that the centre of the door doesn’t hit
the lintel and that the curtain is not
pushed forward hard into the guide.
ii.
e.
Remove the support and safety ropes (Fig. 10).
IMPORTANT NOTE - If the manual release
handle
is more than 1.8 metres from fl oor level when
the
opener is installed, extend the handle to a
height less than 1.8 metres.
f.
Connect the power cord to a suitable power
point, but DO NOT SWITCH ON. Secure the
power cord away from any moving object (e.g.
the door) with the cable clip supplied.
With the opener still disengaged, pull the door
up and down to make sure it runs freely.
g.
fi g 09
fi g 10
Installation
REMOVE PROP
UNTIE ROPE
REFIT RIGHT
BRACKET
PULL STRING HANDLE
IF GEAR IS NOT
TURNING FREELY
TIGHTEN “U”
BOLT NUTS

Owner Installation Instructions GDO-6v3 EasyRoller®
15
Programming the Opener

NOTE: If PE Beams are to be used they must be installed
before setting the travel limits.
fi g 12
fi g 11
Step6.1 - SettingTravelLimits

read the above warning.
WARNING! Once the next step is performed, the
door will automatically close and open to calculate
force settings. Keep persons and objects clear of
the door until it stops and the opener sounds a
beep.
PresstheSETbuttontostore the open limit. Please
WARNING!
Use
caution
whenoperating
the
manual release with the door open since it may fall
rapidly due to weak or broken springs, or an
improperly balanced door.
CAUTION! Do not disengage the opener to
manual operation with children, persons or any
objects including motor vehicles within the
doorway.
NOTE:

l.

To reset the limits, press and hold the CLOSE button
for 6
seconds until the CLOSE LIMIT LED fl ashes quickly. If
no
action is taken within 30 seconds, the opener will
return to normal operating mode and restore the
original limit settings.
 To access theconsole, remove the controls lid
cover and reattach when setup is completed.
a.
Move the door to halfway open. If necessary,
disengage the opener by pulling the cord down
(Fig. 11).
Re-engage the opener by pulling the cord down.
Turn on the power to the opener. The CLOSE
LIMIT
LED will be fl ashing.
Press and hold the CLOSE button - the door
should start closing (Fig. 12).
If the door opens, release the CLOSE button and
press the OPERATE button once to change the
motor’s direction. Press the CLOSE button again
to close the door.
Release the CLOSE button when the door is near
the desired closed position. Single presses of the
CLOSE button will “inch” the door closed.
If the door overshoots, press the OPEN button
to move the door in the open direction.
When the door is at the desired close position,
press the SET button to record the close limit
position. The
OPEN LIMIT LED will now fl ash.
Press and hold the OPEN button to open the
door. Release the OPEN button when the door is
near the desired open position. Single presses of
the OPEN button will “inch” the door open.
If the door overshoots, press the CLOSE button
to move the door in the close direction.
b.
c.
d.
e.
f.
g.
h.
i
.
j
.
k.
Step6.2 - ResettingTravelLimits

16

(Inch Close)

(Inch Open)
(Set)
Button 4
Button 1
Button 2
GDO-6v3 EasyRoller Owner Installation Instructions
®
Programming the Opener

fi g 13
fi g 14
Setting Limits: via Transmitter
Step 7.2 - Setting Limits via Transmitter
Step 7.1 - Code a Transmitter for Limit Setting

Step 7.3 - Resetting the Door Limit Positions

Press and hold the MINUS (-) button for six (6)
seconds until you hear three beeps and the
CLOSE
LIMIT LED starts to fl ash.
Release the CLOSE button.
Repeat Steps 7.2 to set new travel limit
positions.
i.
j.
c.
a.
h.
b.
d.
e.
f.
g.
a.
b.
c.
d.
The GDO-6v3hasthe alternateabilityto set travel
limits using the transmitter, allowingfree movement
around the garage to better assess the desired limit
positions.
Press and hold Button 4 on the transmitter to
close the door. When the door is approximately
2cm from the ground, press and hold Button 3
for two seconds and release (Fig. 14).
If the door opens, release the CLOSE button and
press the OPERATE button once to change the
motor’s direction, then repeat Step 7.2(a).
Each press of Button 4 will allow you to “inch”
the door closed. Keep doing this until the door
reaches the desired close limit position.
If the door is closed too far, press Button 1 to
“inch” the door towards open.
When happy with the close limit position, press
Button 2 to store this in memory.
Press Button 1 to open the door. When
approximately 2cm from the desired open
position, press and hold Button 3 for two
seconds then release.
Each press of Button 1 will allow you to “inch”
the door open. Keep doing this until the door
reaches the desired open limit position.
If the door is opened too far, press Button 4 to
“inch” the door towards closed.
When happy with the open limit position, press
Button 2 on the transmitter to store into memory.
The door will now automatically close and open to
calculate the safety obstruction settings. After this, the
opener can be operated with the OPERATE button.
Ensure the opener is poweredup.
Press and hold the DOOR CODE button (Fig.
13). Press Button 1 on the transmitter for two
seconds (Fig. 14). Release and pause for two
seconds. Press the Button 1 again for two
seconds.
Release the DOOR CODE button.
Limitpositions can be deletedby the followingsteps:
a.
b
.
c.NOTE: There is no need to re-code the transmitter
(Step
7.1)
upon
resetting
travel
limits.
The
transmitter will still be stored in memory.
IMPORTANT
WARNING:
The
door
will
automatically close, open and close again once
Step 7.2(i) is performed. Ensure that no persons
or objects are in the door’s path.

Owner Installation Instructions GDO-6v3 EasyRoller®
Wood (40mm high)
17
Safety Obstruction Force

fi g 15
fi g 16
WARNING! Takecare whentestingoradjusting
the Safety Obstruction Force. Excessive force may
cause
SERIOUS
PERSONAL
INJURY
and/or
PROPERTY DAMAGE.
WARNING! Photo Electric Beams must be
installed where the closing force as measured on
the bottom of the door is more than 400N (40kgf)
DANGER! If the door fails these tests, put the
opener into manual mode, only operate the
door by hand and call for service.
Step 8.2 - Testing Open Cycle

Safety Obstruction Force Test
Step 8.1 - Testing Close Cycle

c.
a.
b.
c.
a.
b.
Press the OPERATEbuttontoopen the door (Fig.
15).
Place a piece of timber approximately 40mm high
on the fl oor directly under the door (Fig. 16).
Press the OPERATE button to close door. The door
should strike the object and start to re-open.
Press theOPERATEbutton to close the door (Fig.
15).
Press again to open the door. When the door
reaches the half open point, grab the bottom rail
of
the door fi rmly and the door should stop.
If the door does not reverse readily when
closing, or stop when opening, the force may
be excessive and need adjusting, refer below.

18
GDO-6v3 EasyRoller Owner Installation Instructions
®
Adjusting Safety Obstruction Force

Step 9.1 - To Increase Force Pressure

Step 9.2 - To Decrease Force Pressure

Step 9.3 - To Recall Factory Set Force

Step 9.4 - To Recalculate Force Margins
a.
b.
a.
b.
c.
d.
a.
Hold down the FORCEMARGINSET button (Fig.
17).
While holding the FORCE MARGIN SET button,
press the OPEN button. Each press increases the
force margin.
The OPEN LIMIT LED will fl ash each time the
OPEN button is pressed to indicate a force
margin increase.
b.
c.
NOTE: If the OPEN LIMIT LED is lit continuously
when pressing the OPEN button, this indicates that
the maximum setting has been reached.
d.
Test the force again as per Steps 8.1 and 8.2
a.
Hold downthe FORCEMARGIN SET button (Fig.
17).
While holding the FORCE MARGIN SET button,
press the CLOSE button. Each press decreases
the force margin.
The CLOSE LIMIT LED will fl ash each time the
CLOSE button is pressed to indicate a force
margin decrease.
b.
c.
NOTE: If the CLOSE LIMIT LED is lit continuously
when pressing the CLOSE button, this indicates that
the minimum setting has been reached.
d.
Test the force again as per Steps 8.1 and 8.2
While holding down theFORCEMARGIN SET
button, press the SET button for two (2) seconds.
(Fig. 18)
Release both buttons. The default setting should
now be recalled.
The SafetyObstruction Force is calculated automatically
during setup. Adjusting this is normally only
necessitated by environmental conditions such as
windy or dusty areas, and areas with extreme
temperature changes.
Press and hold the SET Button for two (2)
seconds, the beeper will sound once (Fig. 19).
The door will start to move and re-calculate
force margins. The door can move between the
open and close limit positions up to four (4)
times (depending on the position of the door
and the power up condition).
A single beep will be heard once the process is
complete.
Test the force again as per Steps 8.1 and 8.2.
Safety Obstruction Force
fi g 17
fi g 18
fi g 19

Owner Installation Instructions GDO-6v3 EasyRoller®
19
Step 10.4 - Code a Transmitter Button to
Enable Vacation Mode

Step 10.2 - Coding a Transmitter Button to
the Courtesy Light

Step 10.3 - Code a Transmitter Button for Pet
(Pedestrian) Mode

Step 10.1 - Code a Transmitter Button for
Door Operation

a.
b.
c.
d.
e.
a.
b
.
c.
d
.
Thetransmitter can be programmedto operate the
courtesy light on the opener independently of the door
moving.
a.
b
.
Press and hold the LIGHT CODE button (Fig.
21).
Press one of the four buttons on the
transmitter for two (2) seconds, pause for two
(2) seconds, then press the same button again
for two (2) seconds. Release the LIGHT CODE
button.
Press the transmitter button to test.
c.
d
.
Press and hold the DOOR CODE button(Fig.20).
Press one of the four buttons on the
transmitter for two (2) seconds, pause for two
(2) seconds, then press the same button again
for two (2) seconds. Release the DOOR CODE
BUTTON.
Press the transmitter button to test.
Briefl y press the DOOR CODE button threetimes,
then press it again and hold (will beep four times on
fourth press (Fig. 22)).
Press one of the four buttons on the transmitter for
two (2) seconds, pause for two (2) seconds, then
press the same button again for two (2) seconds.
Release the DOOR CODE button.
Press the transmitter button to test.
To change the default pet (pedestrian) door opening
position, refer to step 17.
Theopenercan be programmed intoa“Vacation
Mode” where the opener will not respond to any
transmitter except the button of the transmitter that
was programmed for vacation mode.
a.
Briefl y press the DOOR CODE button once,
then
press it again and hold (will beep two times
on second press (Fig. 23)).
Press one of the four (4) buttons on the
transmitter for two (2) seconds, pause for
two (2) seconds, then press the same button
again for two (2) seconds.
Release DOOR CODE button.
Press and hold the transmitter button for six
(6) seconds to set Vacation Mode. The door
code LED will stay lit while Vacation Mode is
active.
To reset Vacation Mode, press the same
button for two seconds.
b.
c.
d
.
e.
Coding Transmitters
fi g 20
fi g 21
fi g 22
fi g 23

20
GDO-6v3 EasyRoller Owner Installation Instructions
®
fi g 24
fi g 25
fi g 26
Step 11 - Easy Access Transmitter
Coding

Step 12 - Remotely Coding Transmitters
Using this method, transmitters can be coded without
access to the opener’s control panel as long as a pre-
coded transmitter is available.
Step 10.5 - Code a Transmitter Button to
Enable AUX OUTPUT

(EAT)
a.
a.
e.
b.
c.
d
.
a.
b
.
c.
d
.
b
.
c.
d.
Press and hold theDOOR CODE button(Fig. 24).
Press the EAT’s button for two (2) seconds,
pause for two (2) seconds, then press the
button again for two (2) seconds (Fig. 25).
Release the DOOR CODE button.
Press the transmitter button to test.
Briefl y press the DOOR CODE button two(2)
times, then press it again and hold (will beep
three times on third press (Fig. 24)).
Press one of the four buttons on the
transmitter for two (2) seconds, pause for two
(2) seconds, then press the same button again
for two (2) seconds.
Release the DOOR CODE button.
Press the transmitter button to test.
Take any pre-coded transmitter. Press the
button for the function to be duplicated and
release. If the door is running, stop it by
pressing the same button again
Using a small needle, press and hold fi rmly for
(2)
two seconds through the Coding Hole (Fig.
26). WITHIN 10 SECONDS, take the additional
transmitter you wish to code. Decide which
button that you want to activate the function
to be duplicated (e.g. activate the door, or
turn on the courtesy light).
Hold the new transmitter’s button for two (2)
seconds, pause for two (2) seconds, hold again
for two (2) seconds and then release.
Wait for 10 seconds and then press the new
transmitter’s button to test.
IMPORTANT NOTE: The door or courtesy light
must activate when the steps below are
performed. This indicates that the pre-coded
transmitter is in range of the opener, and the
correct button has been pressed.
Coding Transmitters

Owner Installation Instructions GDO-6v3 EasyRoller®
21
fi g 27
Deleting Transmitter Codes

Code
Step 13.2 - Deleting All Transmitter Codes
Step 13.1 - Deleting a Stored Transmitter

c.
a.
b.
c.
d.
a.
b.
d.
Turn off power to the opener.
While switched off, press and hold the DOOR
CODE BUTTON (Fig. 27). Turn on the power to
the opener while holding this button.
The OPEN LIMIT, CLOSE LIMIT and DOOR
STATUS LED’s will illuminate for about fi ve
(5) seconds. These LED’s will turn off and the
CODING LED will illuminate.
Release the DOOR CODE BUTTON. All stored
codes will now be deleted. Confi rm this by
coded
pressing buttons on any previously
transmitters - the opener should not respond.
Select the transmitteryou wantto delete.
Press and hold the DOOR CODE BUTTON
(Fig. 27).
Press the transmitter button you would like to
delete for two (2) seconds, pause for two (2)
seconds, press again for two (2) seconds and
then release.
Release the DOOR CODE BUTTON. The code
should now be deleted. Confi rm this by
pressing
the transmitter button - the function (e.g.
door opening) should not respond.

22
GDO-6v3 EasyRoller Owner Installation Instructions
®
Accessories
fi g 28
fi g 29
fi g 30
BLACK
YELLOW
RED
BLACK
BLACK
YELLOW
RED
BLACK
RED
BLACK
R1=2.2K OHM
RED,RED,RED,GOLD
.25WATT 5% TOLERANCE
RESISTANCE
R1
PWR
PE
PE-
GND
OSC
AUX
INSTALLATION INSTRUCTIONS | OWNERS COPY
4
1
2
5
6
3
Alignment
Photo Electric (PE) Beams

Fitting Photo Electric (PE) Beams
Aphoto electric(PE) Beams extends across the door
opening. This photo electric (PE) Beams is designed to
detect an obstruction while the door is closing and to
send a signal to the door opener to reverse or stop the
doormovement.
a.
Attach the mounting bracket (4)to adjustment
bracket (3) with the pan head screw (6) (supplied).
(Fig. 28)
Attach the PE 2000TS bracket (2) to PE beam
transmitter (IR-200TS-TX) with four taptite screws
(m3x5) and attach the other side to adjustment
bracket (3) with the pan head screw (6) (supplied).
Repeat steps a and b to assemble the PE Beam
receiver ( IR-200TS-RX).
b.
c.
Locate the Photo Electric (PE) Beams in a strategic
location in the doorway. Automatic Technology
recommend that the sensor is placed 100 mm above the
fl oor level and as close as possible to the door opening.
Connect as per the wiring diagram (Fig. 30).
Use 2.2 kilo ohm resistor with the colour code red, red,
red and gold on the PE Beams receiver between the
V- and NC terminals as shown in (Fig. 30).
a.
Power up the PE Beams. The green LED on the
transmitter and red LED on the receiver should turn
ON to indicate power is present.
If the receiver is connected to power and the red
LED is on while the green LED is on, the transmitter
and receiver are not aligned.
Make horizontal and/or vertical adjustment on the
transmitter and/or receiver until the red LED turns
off on the receiver, indicating alignment.
b.
c.
NOTE: The height of the beam installation must be
chosen in such a manner that it suits the application
and environmental conditions and provides maximum
safety protection.
WARNING: When using PE Beams, the doorway
must be clear of all obstructions and persons at all
times. The location of the beams and manner in
which it is installed might not give safety
protection at all times. Check to make sure that
the height of the beam and type used give
maximum protection possible.
WARNING: Install the PE Beams as per diagram in
(Fig. 30). Tampering with the PE Beams could
result in serious personal injury and/or property
damage and will void the warranty.
WARNING!
Electric
Beams
must
be
installed where the closing force as measured on
the bottom of the door is more than 400N (40kgf)
R1
PWR
PE
PE-
GND
OSC
AU

Owner Installation Instructions GDO-6v3 EasyRoller®
23
fi g 31
 Auto-Close

Step 15.1 - Setting Auto-Close Time
Step15 - SettingUpAuto-CloseMode
IMPORTANT NOTICE: It is compulsory to have PE
Beams installed when using Auto-Close mode.
c.
e.
a.
b
.
d.
Auto-Close mode is a function that automatically
closes the door a preset time after the PE Beams
recognise that a vehicle has left the garage.
The Auto-Close timer only starts after the PE
Beam’s path is broken. If the PE path is not
broken, the door will remain open until the path is
broken. If the opener incurs a physical obstruction
(i.e. not from the PE Beams) while closing the
door, it will re-open and not Auto-Close until the
PE Beam’s path is broken again.
Hold down the AUTO CLOSE TIME button
(Fig. 31). While holding in the AUTO CLOSE
TIME button, press the OPEN button - each
press will add one second to the Auto-Close
delay.
To decrease the delay time follow Step 15.1(a)
and press the CLOSE button - each press will
deduct one second from the Auto-Close delay.
Press the OPERATE button or transmitter to
open the door. When the door is fully opened
the
OPEN LIMIT LED will fl ash to indicate that
Auto-
Close mode is operational.
Break the PE Beam’s path momentarily to
initialise Auto-Close. When the door reaches
the fully opened position, the door will pause
for the set Auto-Close time and then close.

24
GDO-6v3 EasyRoller Owner Installation Instructions
®
fi g 32
fi g 33
Final Setup
Step 18 - Installing
Transmitter (Optional)

Step 19 - Keyswitch Connection
The GDO-6 has the input to connect bellswitch or

Step 17 - Setting the Pet Mode position

a.
Step 16 - Setting of Courtesy Light Time

the Wall Mounted
a.
b.
c.
d.
keyswitch to open or close the door. Connect the key/
bell switch as per diagram (Fig. 31).
The preset courtesy light timeis threeminutes.Thistime
can only be changed by a “PG3” programmer.
Remove thefaceplate from the transmitter.
Affi x the baseplate in a convenient wall
location
(Fig 30) where the door is visible but out of
the reach of children at a height of at least
1.8 metres
from the fl oor.
Replace the faceplate.
To code the transmitter, see Steps 10.1
through 10.4 on page 19.
Thedefault PetMode height can be changed as follows:
Drive and stop the door at the desired Pet
Mode open position by pressing O/S/C button
on the console or the transmitter button
coded for O/ S/C operation.
Press and hold the OPEN button for six (6)
seconds until the OPEN and CLOSE LED’s are
lit to record the new pet position.
b.
When activated, Pet Mode drives the door to the
preset position from the close position. Pet Mode’s
active status is indicated by both the OPEN and
CLOSE LIMIT LED’s being illuminated. If a Pet Mode
button is pressed while the door is moving, the door
will stop. If a Pet Mode button is pressed when the
door is in the Pet position, then the door will close.
30V PWR
PE
PE (0V)
GND
OSC
AUX OUT

Owner Installation Instructions GDO-6v3 EasyRoller®
25
Final Setup

Step20 - AuxiliaryOutput
Step 21 - Reset all Factory Defaults

External
device
Alarm, Door
opener etc.
The auxiliaryoutput canbeused to control alarm or
another garage dooropener. A valid transmission from
the pre-coded transmitter will cause the auxiliary output
to pulse for approximately 1 (one) second. The maximum
DC voltage must not exceed 35 volts DC. Maximum
current must not exceed 80 ma.(Fig. 34).
a.
b.
c.
d.
Turn power to the openeroff.
Press and hold the SET Button (Fig 35).
Turn power on while holding the SET button.
Continue to hold until all LED’s are off.
This will not erase transmitter codes stored in
memory.
PWR
PE
PE ( 0V )
GND
OSC
AUX OUT
fi g 35
fi g 34

26
GDO-6v3 EasyRoller Owner Installation Instructions
®

(Fig. 37)

(Fig. 37)

(Fig. 37).
IMPORTANT WARNING: Do not connect battery
or solar panel polarity incorrectly - this will result in
serious damage to components.
red wire

SOLAR+

black wire
–SOLAR
(Fig. 38)
WARNING: During Step 22.3 the opener will
become active.
WARNING: Do not connect the batteries until
after Step 22.2.
Step 22.2 - Connect the Solar Panel

Step 22.1 - Mount the Charger Board
1.
2.
3.

Step 22.3 - Mount & Connect the Battery

Step 22.4 - Re-setup and Test the Opener

4.
5.
6.
7.
1.
2.
3.
1
.
2
.3.
4.
5.
6.
1.
2.
Setup travel limits andcodetransmitters as per the
GDO-6 instruction manual.
Press either the OPERATE button, or use a
transmitter to operate the opener.
Mount the solarpanelas described in the
SmartSolar™ Instruction Manual.
Feed the Solar Panel’s cable through the black
grommet on the chassis.
Connect the
totheChargerBoard’s
“
“
” connector, andthe
tothe
” connector
.
Mount the Battery Boxclosetotheopener.
Feed the 2-core 18awg gauge cable (supplied)
through the Battery Box’s grommet.
Connect the red wire to the Battery Box’s “+”
terminal, and the black wire to the “–” terminal
(Fig. 39).
Feed the other end of the battery cable through
the drive unit’s black grommet.
Connect the red wire to the Charger Board’s
“BAT+” connector, and the black wire to the “–
BAT” connector (Fig. 39).
Refi t the timing cover, main cover and light
diffuser.
Unplug the drive unitfrom mains power.
Disengage motor using manual release cord.
Remove the main cover, timing cover and light
diffuser. Then remove the transformer, EMC
board and mains power cable.
Fix the Charger Board under the timing cover
using four (4) M4x8 screws (Fig. 36).
Feed the four wire cable through the opening,
then
connect the three wire harness(red/yellow/black) into
the control board’s “SBY-3”connector
.
Plug the one wire harness(white)into thecontrol
board’s “24vac in” connector
.
Plug the solar shunt(supplied)onto thecontrol
board’s “J13” connector
SmartSolar™ Installation
Fig 36
Fig 37
Fig 38
Fig 39
Red Wire
Black Wire
Bla
e
ck
F
r
ro
m
S
o
a
l
a
r
R
d F
o
m
S
ol
r
To
control
Board
JP1 Solar
Shunt

Owner Installation Instructions GDO-6v3 EasyRoller®
27
Battery Backup Kit Installation
Step 23.1 - Connect the Battery Backup Kit

Step 23.2 - Testing the Battery Backup Kit.
a.

i.
j.
a.
b.
c.
d.
e.
f.
g
.
h.
Battery harness
Cable clamp
Taptite screw M4x10
Battery backup
Control board
DCB-03
SBY-3
Turnoff power to the opener and disengage
motor.
Remove timing cover and light diffuser.
Remove cable clamp and screw (Fig. 40).
Retain cable clamp for later use.
Mount the SBY-3 Charger Board on base and
secure with four (4) Taptite ‘P’ M4 x 8 screws.
Secure lower left corner with cable clamp
holding brown transformer wires.
Feed 4-Wire harness around timing assembly,
through opening and plug into control
board’s SBY-3 connector (Fig. 40).
Remove break away slot on timing cover.
Feed 2-wire battery harness through slot and
replace timing cover and secure in place with
screws.
Mount Battery Backup Kit onto support
chassis
and secure right side screw fi rst (charger
board
side).
Position 2-wire battery harness neatly and
secure left side of battery kit with cable
clamp.
k.
l.
b.
c.
d.
Timing cover
Break away slot on the
timing cover and feed the
battery harness through
the slot
SBY-3 Charger board
Connect battery harness together
.
Reconnect power and re-engage the motor.
Press either the OPERATEbuttonortransmitter
button to activate the door.
Whilst the door is in motion disconnect mains
power. When mains power is cut, the Battery
Backup Kit should respond to the shut down.
The door should continue operating as
normal.
Press OPERATE or a transmitter button to
activate the door.
Whilst door is in motion, re-connect power.
The door should complete the cycle as
normal. Unplug the drive unit from mains
power.
NOTE: Wait
travel.
for the door to complete its
WARNING: After Step 23.1(k) the opener may
become active (even when power is off). This is
a result of a residual charge in the batteries.
(Fig.40)
Fig 40

28
GDO-6v3 EasyRoller Owner Installation Instructions
®
Parameters

Door Status Indicators
Door Opener State
Open
Close
Opening
Closing
Door travel stopped
Door
obstructed
when
opening
Door
obstructed
when
closing
Opener
overloaded
Door in open position with
Auto-
Close mode selected
Pet Mode engaged
Mains power interrupted
OPEN LED (Green)
On
CLOSE LED (Red)
Beeper
Flashing
Flashin
g
Flashin
g
On
Rapid fl ashes
Alternating fl ashes
One second fl ashes
On
On
Flashin
g
Flashin
gFlashing
Alternating fl ashes
Beeps as door moves

Owner Installation Instructions GDO-6v3 EasyRoller®
29
Parameters

Button Functions
Buttons
OPERATE
DOOR CODE
Function
Opens/Stops/Closes the door
Codes a transmitter button for operate, vacation
and pet functions
Codes a transmitter button for light function
Increases the obstruction force margin setting
Decreases the obstruction force margin setting
Resets the factory default force margin settings
Increases the Auto-Close delay time
Decreases the Auto-Close delay time
Resets the factory default Auto-Close delay time
Clears the door limits set positions. Limits then
need to be reset
Enters pet (pedestrian) position mode
Deletes control parameters excluding transmitter
storage memory
Deletes all transmitter storage memory
LIGHT CODE
FORCE MARGIN SET & OPEN
FORCE MARGIN SET & CLOSE
FORCE MARGIN SET (then) SET
AUTO CLOSE TIME (then) OPEN
AUTO CLOSE TIME (then) CLOSE
AUTO CLOSE TIME (then) SET
CLOSE (for 6 secs.)
SET & CLOSE (for 2 secs.)
SET (then power on) & hold until all LED’s are off
DOOR CODE (then power on) & hold until all LED’s
are off
SET & DOOR CODE (the power on) and hold until all
LED’s are off
SET
Deletes all control parameters and transmitter
storage memory.
Re-initialises the Opener to re-calculate force
margin

30
GDO-6v3 EasyRoller Owner Installation Instructions
®
Technical Specifi cations
Factory Default Settings
NOTE:
1. The door must be well balanced. A person should be able to lift the door up manually with very little effort in
Receiver type
Receiver code storage capacity
Transmitter frequency
Coding type
Number of code combinations
Code generation
Courtesy light
Controller fuse
Default
25 secs
3 mins
13
0 secs
Step
-
10 secs
1
1 secs
TrioCode™ type
14 X 4 button Transmitter Codes
TrioCode™ type
Code hopping
Over 4.29 billion random codes
Non-linear encryption algorithm
Festoon Type - 15W 24VD.C.
10A slow blow
Maximum
-
4 mins
20
4 mins
Maximum motor run time
Courtesy light time
Obstruction force margin
Auto close time
Power supply
Standby power
Motor power
Motor type
Controller Voltage
Maximum door opening:
Height:
Weight:


Opener Limits Travel
Width:
230V - 240V A.C. 50Hz
2.2 Watts
100 Watts
24VD.C. Permanent Magnet
24VD.C.
5500mm
3000mm
100kg
3.0 turns of Door Drum
Wheel
case of an emergency.
2. Intermittent operations may occur in areas which experience very strong winds. Strong wind puts extra pressure
on the door and tracks which may in turn trigger the safety obstruction detection system intermittently.
Default Settings & Specifi cations

Owner Installation Instructions GDO-6v3 EasyRoller®
31
Symptom
Door will not operate
PLEASE NOTE:
*Some areas may be prone to excessive radio interference brought on by devices such as cordless telephones,
wireless stereo headphones and baby monitors. It is possible that these devices could cause a degree of
interference such as to greatly reduce the range of the transmitter. In such an instance, please contact your
Automatic Technology dealer for an alternative frequency replacement kit. As this is not a warrantable situation
but an environmental issue, charges may apply for the change over.
Possible cause
Mains power not switched on.
Door is obstructed.
Door is locked or motor jammed.
Door tracks/hardware damaged.
Remedy
Switch on mains power.
Remove obstruction.
Unlock door or remove jam.
Door requires service/repair by
qualifi ed technician.
Turn off “vacation mode”.
Increase force margin setting.
See page 18 to re-calculate force
margin.
Remove obstruction.
Door will not close fully.
Door will not open fully.
Auto-Close not working
Courtesy light not working
Globe keeps blowing
Door starts to close but
automatically reverses to open
position
Door operates from drive unit
(OPERATE) button but not from
transmitter*
See note
The opener is in “vacation mode”.
Adverse weather conditions (wind
or cold) causing door to stiffen and
become tight in the tracks.
Possible obstruction in the
doorway.
Transmitter code not stored in
memory.
Flat battery.
Broken battery lead inside
transmitter.
Door limits positions need to be
reset.
Door limits positions need to be
reset.
Globe blown
Incorrect globe type - must be
festoon Type - 15W 24VD.C.
globe.
PE Beam or wiring faulty.
PE Beam not aligned correctly.
PE Beam is obstructed.
Door obstructed when closing.
Auto-Close time not set.
Auto-Close mode not set
Code transmitter in to openers
memory. Refer step 10.1 on
page 19
Replace battery
Send transmitter to installer or
Automatic
Technology
for
repair.
Reset limits positions. Step 7.3,
page 16.
Reset limits positions. Step 7.3,
page 16.
Replace globe.
Replace globe.
Repair PE Beam or replace
wiring. Re-align optics.
Remove obstruction from path
of
PE.
Remove obstruction.
See Step 15 on page 23.
See Step 15 on page 23.
Troubleshooting

32
GDO-6v3 EasyRoller Owner Installation Instructions
®
Monthly
•
Maintenance
Whilst your opener does not require any
periodic
maintenance, the door that it is fi tted to, does.
Your garage door is a large, heavy, moving
object and should be tested regularly to ensure
it is in good condition. A poorly maintained
door could cause fatal or serious injuries or
serious damage to property.
Service Record

Yearly
Automatic Technology suggests you contact your door
professional to perform an annual door service.
To ensure a long and trouble free life for your opener
the following is recommended:
Disengage
the
opener
and
manually
operate the door: The door must be
smooth to operate by hand. An operating
force on the bottom rail should not exceed
150N (15kg) force.
Each month check that the opener reverses
when the door contacts a 40mm high
object
placed on the fl oor (AS3350).
•
•
NOTE: If the door does not operate smoothly, call
your door professional.
Recordanymaintenance in the following table to assist in any warranty service.
Date
Service by
Signature
Invoice No.
Amount
CAUTION: Frequently examine door, particularly
cables, springs and mountings for signs of wear,
damage or imbalance. Do not use if repair
or adjustment is needed since a fault in the
installation or an incorrectly balanced door may
cause injury. (AS3350)
Adjustments should only be carried out by
experienced persons, as this function can
be dangerous if not performed under strict safety
procedures.
WARNING! Failure to maintain your garage
door may void the warranty on your garage door
opener.
Maintenance

Owner Installation Instructions GDO-6v3 EasyRoller®
33
Spare Parts

34
GDO-6v3 EasyRoller Owner Installation Instructions
®
Notes

Owner Installation Instructions GDO-6v3 EasyRoller®
35
Warranty and Exclusion of Liability
1. This warranty is an addition to any non-excludable conditions or warranties that are implied into this contract
1. One (1) cycle = one (1) open and one (1) close action of the door or gate.
2. This warranty is to be read in conjunction with the owner’s copy of the installation instruction manual.
3 *The door should be balanced in such a way that the user manually is able to open or close the door without using
force not greater than 150N (15kg ) although a greater force may be required for the start of the movement.
by relevant statute, including the Trade Practices Act 1974 (Cwth).
2. Subject to all of the matters set out below, Automatic Technology Australia Pty Ltd (“ATA”) warrants:




(a) roll up door opener drive units for twenty four (24) months or 5000 cycles, whichever occurs fi rst; and
(b) all components and accessories for twelve (12) months, from the date of purchase (specifi ed in the sales
docket receipt) as free of any defects in material and workmanship.
(c) no further warranty will apply for goods repaired in the warranty period.
(d) for all products repaired outside the warranty period, a six (6) month warranty applies from the date of
dispatch.
3. This warranty applies only where the purchaser:



(a) immediately notifi es ATA or the retailer of the alleged defect;
(b) returns the product to the retailer; and
(c) presents the relevant sales docket and this warranty document to the retailer to confi rm the date
of purchase.
4. Except for this warranty, ATA gives no warranties of any kind whatsoever (whether express or implied),
in relation to the product, and all warranties of whatsoever kind relating to the product are, to the extent
permissible by statute, hereby excluded.
5. To the extent permissible by statute, ATA disclaims any liability of whatsoever nature in respect of any claim
or demand for loss or damage which arises out of:



















(a) accidental damage to or normal wear and tear to the product or to the product’s components;
(b) any cost relating to damage resulting from wear and tear;
(c) blown fuses, loss or damage caused by electrical surges, power surges or power spikes;
(d) loss or damage due to theft, fi re, fl ood, rain, water, lightning, storms or any other acts of God;
(e) maximum continuous operating time exceeding one (1) minute in ten (10);
(f) maximum operating force exceeding *20kg (200N) when moving the door manually to the open or
closed position;
(g) door surface area and/or weight exceeding 16.5m and 100kg respectively;
2
(h) door not in safe and correct working order and condition;
(i) evidence of unauthorised repairs;
(j) any cost relating to damage caused by misuse, negligence or failure to maintain the equipment in a
proper working order as per clauses (d) through (h);
(k) installation, adjustment or use which is not in accordance with the instructions set out in installation
instruction manual
(l) attempted or complete modifi cation or repairs to the product carried out by a person who is not
authorised or has not been trained by ATA to carry out such modifi cation or repairs;
(m) faulty or unsuitable wiring of structure to which the product is fi xed or connected;
(n) radio (including citizen band transmission) or any electrical interference;
(o) damage caused by insects;
(p) loss or damage to any property whatsoever or any loss or expense whatsoever resulting or arising there
from or any consequential loss;
(q) any cost or expense arising due to manufacturer recall of any product;
(r) any cost or expense due to negligence of the approved service provider;
(s) installation of a residential garage door opener in a commercial or industrial situation or a non-single
residential dwelling.
6. ATA’s liability under this warranty is limited, at ATA’s absolute option, to replacing or repairing the product
which ATA, in its unfettered opinion, considers to be defective either in material and/or workmanship or to
credit the dealer with the price at which the product was purchased by the dealer.
7. This warranty does not extend to cover labour for installation.
8. This warranty is limited to Return-to-Base (RTB) repair and does not cover labour for on-site attendance.
9. This warranty is void if the Product is not returned to the manufacturer in original or suitably secure packaging.
10. This warranty is only applicable for repairs to the product carried out within Australia.
11. This warranty does not cover consumable items including globes, batteries and fuses.
12. This warranty is not transferable.
13. Where the Product is retailed by any person other than ATA, except for the warranty set out above, such
person has no authority from ATA to give any warranty or guarantee on ATA’s behalf in addition to the
warranty set out above.
NOTES:

GARAGE DOOR OPENERS | GATE OPENERS | REMOTE CONTROL ACCESS SOLUTIONS
© July 2010 Automatic Technology (Australia) Pty Ltd. All rights reserved. TrioCode™, SmartSolar™ are
trademarks and EasyRoller is a registered trademark of Automatic Technology (Australia) Pty Ltd. No part of this
document may be reproduced
®
without prior permission. In an ongoing commitment to product quality we reserve the right to change specifi cation
without
notice. E&OE.
Automatic Technololgy (Australia) Pty Ltd

ABN 11 007 125 368
 (International Enquiries Only)
6-8 Fiveways Boulevard
Keysborough, Victoria, 3173, Australia
P 1300 133 944

+61 2 9722 5666
E
www.ata-aust.com.au
enquiries@aggdoors.com.au

GARAGE DOOR OPENER MANUALS
ATA GDO-6v3 Manual v2.00
ATA
Original manufacturer documentation follows
www.aggdoors.com.au
(03) 8789 1342
enquiries@aggdoors.com.au

GDO-6v3 EasyRoller®
Roll Up Garage Door Opener
INSTALLATION INSTRUCTIONS | OWNERS COPY
Featuring
Technology
TrioCode™
Part # 13236 (Manual) v2.00

2
GDO-6v3 EasyRoller Owner Installation Instructions
®
WARNING: It is vital for the safety of people to follow
all instructions. Failure to comply with the installation
instructions and the safety warnings may result in
serious personal injury and/or property and opener
damage. Please save these instructions for future
reference.
Automatic Technology (Australia) Pty Ltd to the extent that such may be lawfullyexcluded hereby expressly disclaims all

conditions or warranties, statutory or otherwise which may be implied by laws as conditions or warranties of purchase of
an Automatic Technology (Australia) Pty Ltd Roll Up Door Opener. Automatic Technology (Australia) Pty Ltd hereby
further expressly excludes all or any liability for any injury, damage, cost, expense or claim whatsoever suffered by any
person as a result whether directly or indirectly from failure to install the Automatic Technology (Australia) Pty Ltd Roll Up
Door Opener in accordance with these installation instructions.

Owner Installation Instructions GDO-6v3 EasyRoller®
3
Important Safety Instructions
Features
Operating Controls
Package Contents
Installation
Programming the Opener
Safety Obstruction Force
Coding Transmitters
Deleting Transmitter Codes
Accessories
Photo Electric Beam
Auto-Close
Final Setup
Setting of Courtesy Light Time
Setting the Pet Mode Position
Wall Transmitter Installation
Keyswitch Connection
Auxilary Output
Reset all Factory Defaults
SmartSolar™ Installation
Battery Backup Kit Installation
Parameters
Door Status Indicators
Button Functions
Default Settings & Specifi cations
Troubleshooting
Maintenance
Spare Parts
Warranty
4
6
8
10
11
15
17
19
21
22
22
23
24
24
24
24
24
25
25
26
27
28
28
29
30
31
32
33
35
GDO-6v3 EasyRoller®
Roll Up Garage Door Opener

4
GDO-6v3 EasyRoller Owner Installation Instructions
®
CAUTION: If your garage has no pedestrian entrance door, an emergency access device should be installed.
This accessory allows manual operation of the garage door from outside in case of power failure.
For ADDITIONAL SAFETY protection we STRONGLY recommend the fi tting of a Photo Electric (PE)
Beam. In most countries, PE Beams are mandatory on all garage doors fi tted with automatic openers.
For a small additional outlay, Automatic Technology recommends that Photo Electric Beams be
installed with the automatic opener ensuring additional safety and peace of mind.
DO NOT operate the opener unless the garage door is in full view and free from objects such
as cars and children/people. Make sure that the door has fi nished moving before entering or
leaving the garage.
DO NOT operate the opener when children/people are near the door. Children must be
supervised at all times when the EasyRoller® is in use. Serious personal injury and/or
property damage can result from failure to follow this warning.
DO NOT allow children to operate the EasyRoller®. Serious personal injury and/or
property damage can result from failure to follow this warning.
Regularly check to make sure that the Safety Obstruction Force is working
correctly, and is tested and set as per page 17 of this manual. Failure to
follow these instructions could result in serious personal injury and/or
property damage. This test must be repeated at regular intervals and the
necessary adjustments made as required.
Doors requiring over 400N of force to move must have PE Beams
installed.
DO NOT disengage the door opener to manual operation with
children/people or any other objects including motor vehicles
within the doorway.
The door opener is not intended for use by young children
or infi rm persons without adequate supervision. Children
should be supervised to ensure that they do not play
with the remote transmitters or the opener.
Keep hands and loose clothing clear of the door
and door opener at all times.
WARNING: It is vital for the safety of persons to follow
all instructions. Failure to comply with the following
Safety Instructions may result in serious personal injury
and/or property damage.
Important Safety Instructions

Owner Installation Instructions GDO-6v3 EasyRoller®
5
The unit should be installed so that it is protected from the elements. It should not be exposed to water or rain.
It is not to be immersed in water or sprayed directly by a hose or other device.
The garage door must be well balanced. Sticking or binding doors must be repaired by a qualifi ed garage
door installer prior to installation of the opener.
Frequently examine the installation, in particular cables, springs and mountings for signs of wear, damage
or imbalance. DO NOT use if repair or adjustment is needed since a fault in the installation or an
incorrectly balanced door may cause injury. DO NOT attempt to repair the door yourself as hardware
is under extreme tension.
Remove or disengage all garage door locks and mechanisms prior to installation of the opener.
Connect the opener to a properly earthed general purpose 220V mains power outlet installed
by a qualifi ed electrical contractor.
Disconnect the power cord from mains power before making any repairs or removing
covers. Only experienced service personnel should remove covers from the opener.
When using Auto-Close mode, a photo electric beam must be fi tted correctly and
tested for operation at regular intervals. Extreme caution is recommended when
using Auto-Close mode. All safety rules must be followed.
In order for the EasyRoller® to sense an object obstructing the door way,
some force must be exerted on the object. As a result the object, door and/
or person may suffer damage or injury.
If the power supply cord is damaged, it must be replaced by an
Automatic Technology service agent or suitably qualifi ed person.
Make sure that the door is fully open before driving in or out of the
garage and fully closed before leaving the driveway.
Make sure that remote transmitters are kept out of reach of
children.
Install the (optional) wall switch or (optional) wall
mounted transmitter in a location where the garage
door is visible, but out of the reach of children at a
height of at least 1.5 metres from the fl oor.
Important Safety Instructions

6
GDO-6v3 EasyRoller Owner Installation Instructions
®
Operation

Auto courtesy light

TrioCode™ Code Hopping Technology

ISS (intelligent safety obstruction system)

ALPS (Automatic Limits Positioning System)

Toopenor close the door simply press a button on a TrioCode™ handheld
transmitter, a wall mounted transmitter, or optional wall switch for two seconds.
During open and close cycles the door can be stopped by pressing the button
again. The next actuation will move the door in the opposite direction.
ALPS does away with manual adjustmentofthedoor’slimits position using mechanical
parts, such as cams and microswitches. During installation the handheld transmitter can be
programmed to set the door limits positions.
The courtesy lightcomeson automatically for three minutes whenever the door is activated. The light can also
be operated independently of the door by coding a dedicated button on a transmitter.
Whilethe door is performing a close cycle, should it hit an obstacle or be restricted in some manner, it
will automatically reverse. The amount of force the door should encounter before reversing is automatically
adjusted by the doors control system during the initial installation of the automatic door opener. The door will
also stop if restricted whilst opening. The Safety Obstruction Force should be checked monthly.
Everytime aTrioCode™ transmitteris used, a new security code is randomly
generated from over 4.29 billion possibilities. This greatly enhances the security of
the system and makes “code grabbing” a thing of the past.
These transmitters also overcome interference issues by simultaneously sending a
signal over three slightly different frequencies. Even if two of the three signals are
jammed, the system will still work.
Features
Thank
you
for
purchasing
the
Automatic
Technology EasyRoller® Automatic Garage Door
Opener. Designed by our renowned engineers to
suit Vertical Operating Continuous Curtain Roll up
doors, the EasyRoller® will provide years of
smart, simple
& secure convenience to your home.

Owner Installation Instructions GDO-6v3 EasyRoller®
7
Manual operation
The opener is equipped with a unique manual disengaging device. If the power to the opener is
disrupted, the door can be put into manual mode by pulling down on the string handle on an angle
towards the door. This allows for manual operation of the door. To re-engage the opener, pull the
string handle away from the door.
Easy Access Transmitter

Auto-Close mode
Vacation mode

Photo Electric (PE) Beam (optional)

Pet/Pedestrian mode
SmartSolar™ and Battery Backup Compatibility (optional)

TheopenerhasaninputtoconnectaPEBeamfor extra safety and use of the Auto-Close mode.
Insidethemanualreleasehandle is a transmitter designed to be in easy reach so that the garage door can
be operated without having to stretch to reach the operate button on the control panel.
The opener can be programmed to automatically close after an open cycle. The Auto-Close
time is adjustable. It is compulsory to install a PE Beam if this mode is selected, otherwise the
door may cause personal injury or damage to property.
Ahandheld transmitter can be programmed to lock and unlock all other
transmitters that have been programmed into the openers’ memory. The vacation
mode can be used when the door is left idle for long periods of time.
The transmitter can be programmed to open the door to an adjustable partial height
so that the family pet can enter and exit the garage at any time. You may also wish to
open the door to a height suitable for pedestrian access.
The opener can be fi ttedwith a SmartSolar™ or Battery Backup kit for operation in
the event of a power outage, or where mains power access is not available. NOTE: If
the door is the only entrance to the garage, and a battery backup kit is not fi tted,
a keyed cable release should be fi tted externally to the garage.

8
GDO-6v3 EasyRoller Owner Installation Instructions
®
Operating Controls

Terminal Block.
24V PWR is used to power photo electric beam.
PE (Input) for photo electric beam.
PE (-) is used to power photo electric beam.
GND is used with OSC input or AUX output
O/S/C INPUT is used for the connection of a wired switch (momentary contact). This switch
can then be used to open, stop or close the door. Install the wall switch in a location where
the switch is out of reach of children and the garage door is visible.
AUX (output) can be used to control an alarm system.
LIGHT CODE button (White) is used for storing or erasing the transmitter button (code) you wish to use
to switch the courtesy light on the opener on or off.
CODING LED (Red) light fl ashes when a code is being stored or when a transmitter button is pressed.
DOOR CODE BUTTON (Blue) is used for storing or erasing transmitter buttons for door operation.
DOOR STATUS LED (Yellow)
CLOSE button (Red) is used during installation to help set the close limit position. Pressing and holding
this button will move the door in the close direction. Movement stops when the button is released.
NOTE: The safety obstruction detection is inoperable when the CLOSE button is used to move door.
CLOSE LIMIT LED (Red) the LED is very helpful during installation. It illuminates and fl ashes when the
door is closing and remains steady on when the close limit position has been reached.
AUTO CLOSE TIME button (White) is used to adjust the Auto-Close time. Pressing the open button
whilst pressing the Auto Close button increases length of operation. Each press will increase the
time by 5 seconds. Pressing the close button will decrease the time.
FORCE MARGIN SET button. The obstruction force margin is set automatically during installation. The
margin can be adjusted manually using the Force Margin Set button (White). Holding the Force
Margin Set button and pressing OPEN or CLOSE buttons will increase or decrease the amount of
force. The Force Margin Set should only be used if environmental factors (wind, etc.) affect the door’s
operation.
OPEN LIMIT LED (Green) the LED is very helpful during installation. It illuminates and fl ashes when the
door is opening and remains steady on when the open limit position has been reached.
OPEN button (Green) is used during installation to help set the open limit position. Pressing and holding
this button will move the door in the open direction, releasing stops the door.
NOTE: The safety obstruction detection is inoperable when the OPEN button is used to move door.
OPERATE button (Yellow) is used during installation to test the open, stop and close cycles for the
opener. The opener has to be initialised by the Reset button to make the O/S/C button operable.
SET button (Yellow) is used during the installation phase together with the Open and Close buttons to set
the door limit positions. The Set button is also used to re-initialize the Opener.
ENGAGE/DISENGAGEMENT CORD enables manual door operation, especially useful during
power failures. At the cord’s end is the EASY ACCESS TRANSMITTER; a wireless door controller.
01
02
03
04
05
06
07
08
09
10
11
12
13
14

PWR
PE
PE-
GND
OSC
AUX
 Owner Installation Instructions GDO-6v3 EasyRoller®
9
01
15
16
17
13
12
02
04
06
03
05
11
10
07
09
08
15
14
17
16
JP1 SOLAR CONNECTOR the shunt must be fi tted for solar operation.
PROG INPUT is used to connect the Automatic Technology Handheld Programmer for editing control
and receiver functions, accessing diagnostic tools, and activating special features and operating modes.
SBY-3 CONNECTOR is used to connect both Battery Backup Kits and SmartSolar™ kits.

10
GDO-6v3 EasyRoller Owner Installation Instructions
®
Package Contents
1
2
2
2
2
2
2
1
1

Weight Bar
TrioCode™ Keyring Transmitter Pack
GDO-6v3Easyroller®driveunit w/EasyAccessTransmitter
TrioCode™ keyring transmitters
Pan head screw M4x50mm (not included in some models)
Nilock Hex nut M4 (not included in some models)
Flat washer I.D. 3/16 x 1/2 (not included in some models)
Spring washer I.D. 5 (not included in some models)
Locking bar covers
Weight bar (not included in some models)
Installation Instructions
Locking Bar Covers
Drive Unit

Owner Installation Instructions GDO-6v3 EasyRoller®
11
Installation
Pre-Installation Requirements
IMPORTANT SAFETY INSTRUCTIONS FOR INSTALLATION
Warning: Incorrect installation can lead to severe injury.
Follow ALL installation instructions.
fi g 01
fi g 02
fi g01a
Position
The opener can be installed on either the right- or left
hand side of the door (when viewed from inside the
garage). The opener is factory set for right hand side
installation.
Sideroom

Power Supply

Door Operation

Unsuitable Door Types

Properlyearthed3pin single-phase power is required.
This opener must be installed in a dry position that is
protected from the weather. Moisture or corrosion
damage is not covered by the Warranty.
The fi ttingofanopenertodoors with removable mullions is
not recommended.
Theminimumsideroom required from the edge of the door
curtain is 40mm to the inside of the door bracket, and 85mm
to the wall (Fig. 01). If a Battery Backup Kit is to be fi tted, at
least 135mm to the bracket is required (Fig. 01a).
The recommended sideroom from the edge of the
door curtain is 95mm to the inside of the door
bracket, and 135mm to the wall (Fig. 02).
NOTE: Door Axle Diameter must not exceed 35mm.
Thedoor must be in good operating condition. The
maximum effort to move the door up or down, from
stationary, should not exceed 150 Newtons (15kg
force) at the bottom rail. The recommended force is
70N (7kg) for manual operation.
Lift the door to about halfway. When released, the
door should stay in place supported entirely by its
springs. Raise and lower the door to check for
binding or sticking.
The door may need to be serviced to meet these
requirements – refer to the door manufacturer’s
servicing instructions or contact an authorised dealer.
IMPORTANT NOTE - The opener should not be
installed on any door incorporating a wicket door.
WARNING! A portable power generator is not
recommended. The opener may appear to
malfunction due to spikes, surges and fl uctuations
in
the generated voltage.
135

12
GDO-6v3 EasyRoller Owner Installation Instructions
®
Installation
Step 1 - Preparation
a.

Step 2 - Fit the Weight Bar
Theweightbarmust befittedtothe bottom-centre for
proper operation of theopener.
b.
c.
d.

a.
b.

Remove the door handle
Fit the weight bar and refi t the handle using the
new fasteners provided
.
Ifthedoordoesnothavea handle:
Checkthedoor’s operation:
i.
The door must travel smoothly and be
easy to operate by hand.
Operating force on the bottom rail
should be approximately 70N (7kgs)
force.
Adjust
any
tight
or
twisted
guides/tracks Clean the guides if there
is any oil or wax present using a
suitable white spirit. The only lubricant
suitable for use on door guides is silicon
spray. DO NOT use WD- 40, RP-7,
petroleum grease, or similar.
ii.
iii
.
iv
.
Install the locking bar covers if there are locking bar
holes in the guides.
Affi x the warning labels supplied with this opener in
a prominent place where they are clearly visible.
Choose the side where the opener will be installed,
ensuring there is suffi cient sideroom.

a.
Locate the centre of the door at the bottom rail
.
b.
Place the weight bar at this point (there is a
centreline marked on the weight bar) and mark
the two positions where the fasteners will go.
Drill the two 4.5mm holes in the door and fi t the
weight bar using the new fasteners provided.
(Fig.06).
c.
Check that the door is still balanced and smooth to
operate. If it is not, then the door may require
servicing (refer to door manufacturer’s instructions).
Ifthedoorhasa handle:
(Fig.04)
(Fig.05)
WARNING! The door and its springs are under
signifi cant tension. Adjustments should only
be carried out by experienced persons, as this
function can be dangerous if not performed under
strict safety procedures.
(Fig.03)
IMPORTANT NOTE - Do not lock your door with
the locking bars after installing the opener.
Remove or disable the lock using wire or cable
ties. Security is not affected as the opener has an
inbuilt locking facility.
fi g 03
fi g 05
fi g 06
fi g 04

Owner Installation Instructions GDO-6v3 EasyRoller®
13
Installation

fi g 07
fi g 08
Step 4 - Fitting the opener

Step3 - PintheDoorCurtain
a.
e.
f.
b.
d.
At the end where the opener will be fi tted, use
masking tape or pen to mark the position of
the U-bolt in the door bracket and the
position of the door bracket on the wall to
assist in reassembling. Remove the U-bolt (or
bolts) and saddle from the door bracket.
Remove the door bracket allowing the door to
rest
on the support
Atthe end opposite towhere the opener will be
fi tted, check that the U-bolt is tightened
securely.
Open the door completely and tie safety ropes
around the door roll approximately 300mm from
each end. Do not tie the ropes too tight as
damage to the curtain may ensue.
At the end where the opener is to be fi tted,
support
the door with a ladder or suitable prop:
Pinning thedoor curtain tothe doordrummaintains
security when the opener closes andlocks.
a.
b
.
c.
Fully close the door.
Mark drill holes at both ends of the drum (Fig.
07). Drill holes using 3.2mm (1/8”) drill bit. Open
the door slightly for easier access, if necessary.
Fit a 10 x 32mm screw and washer to each end.
This screw should be positioned as low as
possible, but make sure that it does not alter the
curtain’s normal approach to the guide (lead-in
angle).
d.
NOTE: Make sure that the screws do not project into the
area where the internal gear will fi t.
(Fig. 08).
NOTE - For minimum sideroom installations the
door may have to be taken down.
WARNING! The opener must not be used with a
door incorporating a wicket door.
WARNING! Make sure the support is snug under
the door, stable and will not move.
Door drum
Pin Points
U-bolt
Bracket

14
GDO-6v3 EasyRoller Owner Installation Instructions
®
Step 5 - Mounting the Opener

a.
Iftheinternal gear does not rotate freely, switch the
opener
to
manual
by
pulling
the
disengagement handle down (there will be a
click), so that the ring gear can be rotated by
hand.
Slide the opener over the door axle and into
the drum of the door (Fig. 09).
Ensure the internal gear is pushed in as far as
possible (without interfering with the door
curtain) and that one of the door drum’s wheel
spokes is completely between the opener’s
drive forks. Re-attach the door bracket using
your reference marks as a guide and tighten
the bolts. Ensure that the slots in the
mounting bracket of the opener align with the
slots in the door bracket, otherwise the door
bracket may have to be relocated (Fig. 10).
b.
c.
d.
NOTE: If the bracket cannot be relocated, the opener
may be fi tted onto the axle using the opener’s saddle
and U-bolt as follows:
i.
Using your reference marks as a guide,
sit the opener on the door mounting
bracket and secure with the opener’s
U-
bolt and saddle and tighten fi rmly.
Adjust the door position (if necessary)
on the brackets so that the door feeds
smoothly into the guides. Make sure
that the centre of the door doesn’t hit
the lintel and that the curtain is not
pushed forward hard into the guide.
ii.
e.
Remove the support and safety ropes (Fig. 10).
IMPORTANT NOTE - If the manual release
handle
is more than 1.8 metres from fl oor level when
the
opener is installed, extend the handle to a
height less than 1.8 metres.
f.
Connect the power cord to a suitable power
point, but DO NOT SWITCH ON. Secure the
power cord away from any moving object (e.g.
the door) with the cable clip supplied.
With the opener still disengaged, pull the door
up and down to make sure it runs freely.
g.
fi g 09
fi g 10
Installation
REMOVE PROP
UNTIE ROPE
REFIT RIGHT
BRACKET
PULL STRING HANDLE
IF GEAR IS NOT
TURNING FREELY
TIGHTEN “U”
BOLT NUTS

Owner Installation Instructions GDO-6v3 EasyRoller®
15
Programming the Opener

NOTE: If PE Beams are to be used they must be installed
before setting the travel limits.
fi g 12
fi g 11
Step6.1 - SettingTravelLimits

read the above warning.
WARNING! Once the next step is performed, the
door will automatically close and open to calculate
force settings. Keep persons and objects clear of
the door until it stops and the opener sounds a
beep.
PresstheSETbuttontostore the open limit. Please
WARNING!
Use
caution
whenoperating
the
manual release with the door open since it may fall
rapidly due to weak or broken springs, or an
improperly balanced door.
CAUTION! Do not disengage the opener to
manual operation with children, persons or any
objects including motor vehicles within the
doorway.
NOTE:

l.

To reset the limits, press and hold the CLOSE button
for 6
seconds until the CLOSE LIMIT LED fl ashes quickly. If
no
action is taken within 30 seconds, the opener will
return to normal operating mode and restore the
original limit settings.
 To access theconsole, remove the controls lid
cover and reattach when setup is completed.
a.
Move the door to halfway open. If necessary,
disengage the opener by pulling the cord down
(Fig. 11).
Re-engage the opener by pulling the cord down.
Turn on the power to the opener. The CLOSE
LIMIT
LED will be fl ashing.
Press and hold the CLOSE button - the door
should start closing (Fig. 12).
If the door opens, release the CLOSE button and
press the OPERATE button once to change the
motor’s direction. Press the CLOSE button again
to close the door.
Release the CLOSE button when the door is near
the desired closed position. Single presses of the
CLOSE button will “inch” the door closed.
If the door overshoots, press the OPEN button
to move the door in the open direction.
When the door is at the desired close position,
press the SET button to record the close limit
position. The
OPEN LIMIT LED will now fl ash.
Press and hold the OPEN button to open the
door. Release the OPEN button when the door is
near the desired open position. Single presses of
the OPEN button will “inch” the door open.
If the door overshoots, press the CLOSE button
to move the door in the close direction.
b.
c.
d.
e.
f.
g.
h.
i
.
j
.
k.
Step6.2 - ResettingTravelLimits

16

(Inch Close)

(Inch Open)
(Set)
Button 4
Button 1
Button 2
GDO-6v3 EasyRoller Owner Installation Instructions
®
Programming the Opener

fi g 13
fi g 14
Setting Limits: via Transmitter
Step 7.2 - Setting Limits via Transmitter
Step 7.1 - Code a Transmitter for Limit Setting

Step 7.3 - Resetting the Door Limit Positions

Press and hold the MINUS (-) button for six (6)
seconds until you hear three beeps and the
CLOSE
LIMIT LED starts to fl ash.
Release the CLOSE button.
Repeat Steps 7.2 to set new travel limit
positions.
i.
j.
c.
a.
h.
b.
d.
e.
f.
g.
a.
b.
c.
d.
The GDO-6v3hasthe alternateabilityto set travel
limits using the transmitter, allowingfree movement
around the garage to better assess the desired limit
positions.
Press and hold Button 4 on the transmitter to
close the door. When the door is approximately
2cm from the ground, press and hold Button 3
for two seconds and release (Fig. 14).
If the door opens, release the CLOSE button and
press the OPERATE button once to change the
motor’s direction, then repeat Step 7.2(a).
Each press of Button 4 will allow you to “inch”
the door closed. Keep doing this until the door
reaches the desired close limit position.
If the door is closed too far, press Button 1 to
“inch” the door towards open.
When happy with the close limit position, press
Button 2 to store this in memory.
Press Button 1 to open the door. When
approximately 2cm from the desired open
position, press and hold Button 3 for two
seconds then release.
Each press of Button 1 will allow you to “inch”
the door open. Keep doing this until the door
reaches the desired open limit position.
If the door is opened too far, press Button 4 to
“inch” the door towards closed.
When happy with the open limit position, press
Button 2 on the transmitter to store into memory.
The door will now automatically close and open to
calculate the safety obstruction settings. After this, the
opener can be operated with the OPERATE button.
Ensure the opener is poweredup.
Press and hold the DOOR CODE button (Fig.
13). Press Button 1 on the transmitter for two
seconds (Fig. 14). Release and pause for two
seconds. Press the Button 1 again for two
seconds.
Release the DOOR CODE button.
Limitpositions can be deletedby the followingsteps:
a.
b
.
c.NOTE: There is no need to re-code the transmitter
(Step
7.1)
upon
resetting
travel
limits.
The
transmitter will still be stored in memory.
IMPORTANT
WARNING:
The
door
will
automatically close, open and close again once
Step 7.2(i) is performed. Ensure that no persons
or objects are in the door’s path.

Owner Installation Instructions GDO-6v3 EasyRoller®
Wood (40mm high)
17
Safety Obstruction Force

fi g 15
fi g 16
WARNING! Takecare whentestingoradjusting
the Safety Obstruction Force. Excessive force may
cause
SERIOUS
PERSONAL
INJURY
and/or
PROPERTY DAMAGE.
DANGER! If the door fails these tests, put the
opener into manual mode, only operate the
door by hand and call for service.
Step 8.2 - Testing Open Cycle

Safety Obstruction Force Test
Step 8.1 - Testing Close Cycle

c.
a.
b.
c.
a.
b.
Press the OPERATEbuttontoopen the door (Fig.
15).
Place a piece of timber approximately 40mm high
on the fl oor directly under the door (Fig. 16).
Press the OPERATE button to close door. The door
should strike the object and start to re-open.
Press theOPERATEbutton to close the door (Fig.
15).
Press again to open the door. When the door
reaches the half open point, grab the bottom rail
of
the door fi rmly and the door should stop.
If the door does not reverse readily when
closing, or stop when opening, the force may
be excessive and need adjusting, refer below.

18
GDO-6v3 EasyRoller Owner Installation Instructions
®
Adjusting Safety Obstruction Force

Step 9.1 - To Increase Force Pressure

Step 9.2 - To Decrease Force Pressure

Step 9.3 - To Recall Factory Set Force

Step 9.4 - To Recalculate Force Margins
a.
b.
a.
b.
c.
d.
a.
Hold down the FORCEMARGINSET button (Fig.
17).
While holding the FORCE MARGIN SET button,
press the OPEN button. Each press increases the
force margin.
The OPEN LIMIT LED will fl ash each time the
OPEN button is pressed to indicate a force
margin increase.
b.
c.
NOTE: If the OPEN LIMIT LED is lit continuously
when pressing the OPEN button, this indicates that
the maximum setting has been reached.
d.
Test the force again as per Steps 8.1 and 8.2
a.
Hold downthe FORCEMARGIN SET button (Fig.
17).
While holding the FORCE MARGIN SET button,
press the CLOSE button. Each press decreases
the force margin.
The CLOSE LIMIT LED will fl ash each time the
CLOSE button is pressed to indicate a force
margin decrease.
b.
c.
NOTE: If the CLOSE LIMIT LED is lit continuously
when pressing the CLOSE button, this indicates that
the minimum setting has been reached.
d.
Test the force again as per Steps 8.1 and 8.2
While holding down theFORCEMARGIN SET
button, press the SET button for two (2) seconds.
(Fig. 18)
Release both buttons. The default setting should
now be recalled.
The SafetyObstruction Force is calculated automatically
during setup. Adjusting this is normally only
necessitated by environmental conditions such as
windy or dusty areas, and areas with extreme
temperature changes.
Press and hold the SET Button for two (2)
seconds, the beeper will sound once (Fig. 19).
The door will start to move and re-calculate
force margins. The door can move between the
open and close limit positions up to four (4)
times (depending on the position of the door
and the power up condition).
A single beep will be heard once the process is
complete.
Test the force again as per Steps 8.1 and 8.2.
WARNING: Doors requiring over 400N of force to
move must have PE Beams fi tted for safety.
Safety Obstruction Force
fi g 17
fi g 18
fi g 19

Owner Installation Instructions GDO-6v3 EasyRoller®
19
Step 10.4 - Code a Transmitter Button to
Enable Vacation Mode

Step 10.2 - Coding a Transmitter Button to
the Courtesy Light

Step 10.3 - Code a Transmitter Button for Pet
(Pedestrian) Mode

Step 10.1 - Code a Transmitter Button for
Door Operation

a.
b.
c.
d.
e.
a.
b
.
c.
d
.
Thetransmitter can be programmedto operate the
courtesy light on the opener independently of the door
moving.
a.
b
.
Press and hold the LIGHT CODE button (Fig.
21).
Press one of the four buttons on the
transmitter for two (2) seconds, pause for two
(2) seconds, then press the same button again
for two (2) seconds. Release the LIGHT CODE
button.
Press the transmitter button to test.
c.
d
.
Press and hold the DOOR CODE button(Fig.20).
Press one of the four buttons on the
transmitter for two (2) seconds, pause for two
(2) seconds, then press the same button again
for two (2) seconds. Release the DOOR CODE
BUTTON.
Press the transmitter button to test.
Briefl y press the DOOR CODE button threetimes,
then press it again and hold (will beep four times on
fourth press (Fig. 22)).
Press one of the four buttons on the transmitter for
two (2) seconds, pause for two (2) seconds, then
press the same button again for two (2) seconds.
Release the DOOR CODE button.
Press the transmitter button to test.
To change the default pet (pedestrian) door opening
position, refer to step 17.
Theopenercan be programmed intoa“Vacation
Mode” where the opener will not respond to any
transmitter except the button of the transmitter that
was programmed for vacation mode.
a.
Briefl y press the DOOR CODE button once,
then
press it again and hold (will beep two times
on second press (Fig. 23)).
Press one of the four (4) buttons on the
transmitter for two (2) seconds, pause for
two (2) seconds, then press the same button
again for two (2) seconds.
Release DOOR CODE button.
Press and hold the transmitter button for six
(6) seconds to set Vacation Mode. The door
code LED will stay lit while Vacation Mode is
active.
To reset Vacation Mode, press the same
button for two seconds.
b.
c.
d
.
e.
Coding Transmitters
fi g 20
fi g 21
fi g 22
fi g 23

20
GDO-6v3 EasyRoller Owner Installation Instructions
®
fi g 24
fi g 25
fi g 26
Step 11 - Easy Access Transmitter
Coding

Step 12 - Remotely Coding Transmitters
Using this method, transmitters can be coded without
access to the opener’s control panel as long as a pre-
coded transmitter is available.
Step 10.5 - Code a Transmitter Button to
Enable AUX OUTPUT

(EAT)
a.
a.
e.
b.
c.
d
.
a.
b
.
c.
d
.
b
.
c.
d.
Press and hold theDOOR CODE button(Fig. 24).
Press the EAT’s button for two (2) seconds,
pause for two (2) seconds, then press the
button again for two (2) seconds (Fig. 25).
Release the DOOR CODE button.
Press the transmitter button to test.
Briefl y press the DOOR CODE button two(2)
times, then press it again and hold (will beep
three times on third press (Fig. 24)).
Press one of the four buttons on the
transmitter for two (2) seconds, pause for two
(2) seconds, then press the same button again
for two (2) seconds.
Release the DOOR CODE button.
Press the transmitter button to test.
Take any pre-coded transmitter. Press the
button for the function to be duplicated and
release. If the door is running, stop it by
pressing the same button again
Using a small needle, press and hold fi rmly for
(2)
two seconds through the Coding Hole (Fig.
26). WITHIN 10 SECONDS, take the additional
transmitter you wish to code. Decide which
button that you want to activate the function
to be duplicated (e.g. activate the door, or
turn on the courtesy light).
Hold the new transmitter’s button for two (2)
seconds, pause for two (2) seconds, hold again
for two (2) seconds and then release.
Wait for 10 seconds and then press the new
transmitter’s button to test.
IMPORTANT NOTE: The door or courtesy light
must activate when the steps below are
performed. This indicates that the pre-coded
transmitter is in range of the opener, and the
correct button has been pressed.
Coding Transmitters

Owner Installation Instructions GDO-6v3 EasyRoller®
21
fi g 27
Deleting Transmitter Codes

Code
Step 13.2 - Deleting All Transmitter Codes
Step 13.1 - Deleting a Stored Transmitter

c.
a.
b.
c.
d.
a.
b.
d.
Turn off power to the opener.
While switched off, press and hold the DOOR
CODE BUTTON (Fig. 27). Turn on the power to
the opener while holding this button.
The OPEN LIMIT, CLOSE LIMIT and DOOR
STATUS LED’s will illuminate for about fi ve
(5) seconds. These LED’s will turn off and the
CODING LED will illuminate.
Release the DOOR CODE BUTTON. All stored
codes will now be deleted. Confi rm this by
coded
pressing buttons on any previously
transmitters - the opener should not respond.
Select the transmitteryou wantto delete.
Press and hold the DOOR CODE BUTTON
(Fig. 27).
Press the transmitter button you would like to
delete for two (2) seconds, pause for two (2)
seconds, press again for two (2) seconds and
then release.
Release the DOOR CODE BUTTON. The code
should now be deleted. Confi rm this by
pressing
the transmitter button - the function (e.g.
door opening) should not respond.

22
GDO-6v3 EasyRoller Owner Installation Instructions
®
Accessories
fi g 28
fi g 29
fi g 30
BLACK
YELLOW
RED
BLACK
BLACK
YELLOW
RED
BLACK
RED
BLACK
R1=2.2K OHM
RED,RED,RED,GOLD
.25WATT 5% TOLERANCE
RESISTANCE
R1
PWR
PE
PE-
GND
OSC
AUX
INSTALLATION INSTRUCTIONS | OWNERS COPY
4
1
2
5
6
3
Alignment
Photo Electric (PE) Beams

Fitting Photo Electric (PE) Beams
Aphoto electric(PE) Beams extends across the door
opening. This photo electric (PE) Beams is designed to
detect an obstruction while the door is closing and to
send a signal to the door opener to reverse or stop the
doormovement.
a.
Attach the mounting bracket (4)to adjustment
bracket (3) with the pan head screw (6) (supplied).
(Fig. 28)
Attach the PE 2000TS bracket (2) to PE beam
transmitter (IR-200TS-TX) with four taptite screws
(m3x5) and attach the other side to adjustment
bracket (3) with the pan head screw (6) (supplied).
Repeat steps a and b to assemble the PE Beam
receiver ( IR-200TS-RX).
b.
c.
Locate the Photo Electric (PE) Beams in a strategic
location in the doorway. Automatic Technology
recommend that the sensor is placed 100 mm above the
fl oor level and as close as possible to the door opening.
Connect as per the wiring diagram (Fig. 30).
Use 2.2 kilo ohm resistor with the colour code red, red,
red and gold on the PE Beams receiver between the
V- and NC terminals as shown in (Fig. 30).
a.
Power up the PE Beams. The green LED on the
transmitter and red LED on the receiver should turn
ON to indicate power is present.
If the receiver is connected to power and the red
LED is on while the green LED is on, the transmitter
and receiver are not aligned.
Make horizontal and/or vertical adjustment on the
transmitter and/or receiver until the red LED turns
off on the receiver, indicating alignment.
b.
c.
NOTE: The height of the beam installation must be
chosen in such a manner that it suits the application
and environmental conditions and provides maximum
safety protection.
WARNING: When using PE Beams, the doorway
must be clear of all obstructions and persons at all
times. The location of the beams and manner in
which it is installed might not give safety
protection at all times. Check to make sure that
the height of the beam and type used give
maximum protection possible.
WARNING: Install the PE Beams as per diagram in
(Fig. 30). Tampering with the PE Beams could
result in serious personal injury and/or property
damage and will void the warranty.
WARNING: PE beams must be installed if the
closing force at the bottom edge of the door
exceeds 400N (40kg force)
R1
PWR
PE
PE-
GND
OSC
AU

Owner Installation Instructions GDO-6v3 EasyRoller®
23
fi g 31
 Auto-Close

Step 15.1 - Setting Auto-Close Time
Step15 - SettingUpAuto-CloseMode
IMPORTANT NOTICE: It is compulsory to have PE
Beams installed when using Auto-Close mode.
c.
e.
a.
b
.
d.
Auto-Close mode is a function that automatically
closes the door a preset time after the PE Beams
recognise that a vehicle has left the garage.
The Auto-Close timer only starts after the PE
Beam’s path is broken. If the PE path is not
broken, the door will remain open until the path is
broken. If the opener incurs a physical obstruction
(i.e. not from the PE Beams) while closing the
door, it will re-open and not Auto-Close until the
PE Beam’s path is broken again.
Hold down the AUTO CLOSE TIME button
(Fig. 31). While holding in the AUTO CLOSE
TIME button, press the OPEN button - each
press will add one second to the Auto-Close
delay.
To decrease the delay time follow Step 15.1(a)
and press the CLOSE button - each press will
deduct one second from the Auto-Close delay.
Press the OPERATE button or transmitter to
open the door. When the door is fully opened
the
OPEN LIMIT LED will fl ash to indicate that
Auto-
Close mode is operational.
Break the PE Beam’s path momentarily to
initialise Auto-Close. When the door reaches
the fully opened position, the door will pause
for the set Auto-Close time and then close.

24
GDO-6v3 EasyRoller Owner Installation Instructions
®
fi g 32
fi g 33
Final Setup
Step 18 - Installing
Transmitter (Optional)

Step 19 - Keyswitch Connection
The GDO-6 has the input to connect bellswitch or

Step 17 - Setting the Pet Mode position

a.
Step 16 - Setting of Courtesy Light Time

the Wall Mounted
a.
b.
c.
d.
keyswitch to open or close the door. Connect the key/
bell switch as per diagram (Fig. 31).
The preset courtesy light timeis threeminutes.Thistime
can only be changed by a “PG3” programmer.
Remove thefaceplate from the transmitter.
Affi x the baseplate in a convenient wall
location
(Fig 30) where the door is visible but out of
the reach of children at a height of at least
1.8 metres
from the fl oor.
Replace the faceplate.
To code the transmitter, see Steps 10.1
through 10.4 on page 19.
Thedefault Pet Mode height can be changed as follows:
Make sure the door is closed, then press and
hold the OPEN button for six (6) seconds until
you hear three beeps and the OPEN and
CLOSE
LED’s fl ash rapidly.
Press the OPEN or CLOSE button to move the
door to the desired Pet Mode open position.
Press the SET button to record the new
position.
b.
c.
When activated, Pet Mode drives the door to the
preset position from either above or below. Pet
Mode’s active status is indicated by both the OPEN
and CLOSE LIMIT LED’s being illuminated. If a Pet
Mode button is pressed while the door is moving, the
door will stop. If a Pet Mode button is pressed when
the door is in the Pet position, then the door will
close.
30V PWR
PE
PE (0V)
GND
OSC
AUX OUT

Owner Installation Instructions GDO-6v3 EasyRoller®
25
Final Setup

Step20 - AuxiliaryOutput
Step 21 - Reset all Factory Defaults

External
device
Alarm, Door
opener etc.
The auxiliaryoutput canbeused to control alarm or
another garage dooropener. A valid transmission from
the pre-coded transmitter will cause the auxiliary output
to pulse for approximately 1 (one) second. The maximum
DC voltage must not exceed 35 volts DC. Maximum
current must not exceed 80 ma.(Fig. 34).
a.
b.
c.
d.
Turn power to the openeroff.
Press and hold the SET Button (Fig 35).
Turn power on while holding the SET button.
Continue to hold until all LED’s are off.
This will not erase transmitter codes stored in
memory.
PWR
PE
PE ( 0V )
GND
OSC
AUX OUT
fi g 35
fi g 34

26
GDO-6v3 EasyRoller Owner Installation Instructions
®

(Fig. 37)

(Fig. 37)

(Fig. 37).
IMPORTANT WARNING: Do not connect battery
or solar panel polarity incorrectly - this will result in
serious damage to components.
red wire

SOLAR+

black wire
–SOLAR
(Fig. 38)
WARNING: During Step 22.3 the opener will
become active.
WARNING: Do not connect the batteries until
after Step 22.2.
Step 22.2 - Connect the Solar Panel

Step 22.1 - Mount the Charger Board
1.
2.
3.

Step 22.3 - Mount & Connect the Battery

Step 22.4 - Re-setup and Test the Opener

4.
5.
6.
7.
1.
2.
3.
1
.
2
.3.
4.
5.
6.
1.
2.
Setup travel limits andcodetransmitters as per the
GDO-6 instruction manual.
Press either the OPERATE button, or use a
transmitter to operate the opener.
Mount the solarpanelas described in the
SmartSolar™ Instruction Manual.
Feed the Solar Panel’s cable through the black
grommet on the chassis.
Connect the
totheChargerBoard’s
“
“
” connector, andthe
tothe
” connector
.
Mount the Battery Boxclosetotheopener.
Feed the 2-core 18awg gauge cable (supplied)
through the Battery Box’s grommet.
Connect the red wire to the Battery Box’s “+”
terminal, and the black wire to the “–” terminal
(Fig. 39).
Feed the other end of the battery cable through
the drive unit’s black grommet.
Connect the red wire to the Charger Board’s
“BAT+” connector, and the black wire to the “–
BAT” connector (Fig. 39).
Refi t the timing cover, main cover and light
diffuser.
Unplug the drive unitfrom mains power.
Disengage motor using manual release cord.
Remove the main cover, timing cover and light
diffuser. Then remove the transformer, EMC
board and mains power cable.
Fix the Charger Board under the timing cover
using four (4) M4x8 screws (Fig. 36).
Feed the four wire cable through the opening,
then
connect the three wire harness(red/yellow/black) into
the control board’s “SBY-3”connector
.
Plug the one wire harness(white)into thecontrol
board’s “24vac in” connector
.
Plug the solar shunt(supplied)onto thecontrol
board’s “J13” connector
SmartSolar™ Installation
Fig 36
Fig 37
Fig 38
Fig 39
Red Wire
Black Wire
Bla
e
ck
F
r
ro
m
S
o
a
l
a
r
R
d F
o
m
S
ol
r
To
control
Board
JP1 Solar
Shunt

Owner Installation Instructions GDO-6v3 EasyRoller®
27
Battery Backup Kit Installation
Step 23.1 - Connect the Battery Backup Kit

Step 23.2 - Testing the Battery Backup Kit.
a.

i.
j.
a.
b.
c.
d.
e.
f.
g
.
h.
Battery harness
Cable clamp
Taptite screw M4x10
Battery backup
Control board
DCB-05
SBY-3
Turnoff power to the opener and disengage
motor.
Remove timing cover and light diffuser.
Remove cable clamp and screw (Fig. 40).
Retain cable clamp for later use.
Mount the SBY-3 Charger Board on base and
secure with four (4) Taptite ‘P’ M4 x 8 screws.
Secure lower left corner with cable clamp
holding brown transformer wires.
Feed 4-Wire harness around timing assembly,
through opening and plug into control
board’s SBY-3 connector (Fig. 40).
Remove break away slot on timing cover.
Feed 2-wire battery harness through slot and
replace timing cover and secure in place with
screws.
Mount Battery Backup Kit onto support
chassis
and secure right side screw fi rst (charger
board
side).
Position 2-wire battery harness neatly and
secure left side of battery kit with cable
clamp.
k.
l.
b.
c.
d.
Timing cover
Break away slot on the
timing cover and feed the
battery harness through
the slot
SBY-3 Charger board
Connect battery harness together
.
Reconnect power and re-engage the motor.
Press either the OPERATEbuttonortransmitter
button to activate the door.
Whilst the door is in motion disconnect mains
power. When mains power is cut, the Battery
Backup Kit should respond to the shut down.
The door should continue operating as
normal.
Press OPERATE or a transmitter button to
activate the door.
Whilst door is in motion, re-connect power.
The door should complete the cycle as
normal. Unplug the drive unit from mains
power.
NOTE: Wait
travel.
for the door to complete its
WARNING: After Step 23.1(k) the opener may
become active (even when power is off). This is
a result of a residual charge in the batteries.
(Fig.40)
Fig 40

28
GDO-6v3 EasyRoller Owner Installation Instructions
®
Parameters

Door Status Indicators
Door Opener State
Open
Close
Opening
Closing
Door travel stopped
Door
obstructed
when
opening
Door
obstructed
when
closing
Opener
overloaded
Door in open position with
Auto-
Close mode selected
Pet Mode engaged
Mains power interrupted
OPEN LED (Green)
On
CLOSE LED (Red)
Beeper
Flashing
Flashin
g
Flashin
g
On
Rapid fl ashes
Alternating fl ashes
One second fl ashes
On
On
Flashin
g
Flashin
gFlashing
Alternating fl ashes
Beeps as door moves

Owner Installation Instructions GDO-6v3 EasyRoller®
29
Parameters

Button Functions
Buttons
OPERATE
DOOR CODE
Function
Opens/Stops/Closes the door
Codes a transmitter button for operate, vacation
and pet functions
Codes a transmitter button for light function
Increases the obstruction force margin setting
Decreases the obstruction force margin setting
Resets the factory default force margin settings
Increases the Auto-Close delay time
Decreases the Auto-Close delay time
Resets the factory default Auto-Close delay time
Clears the door limits set positions. Limits then
need to be reset
Enters pet (pedestrian) position mode
Deletes control parameters excluding transmitter
storage memory
Deletes all transmitter storage memory
LIGHT CODE
FORCE MARGIN SET & OPEN
FORCE MARGIN SET & CLOSE
FORCE MARGIN SET (then) SET
AUTO CLOSE TIME (then) OPEN
AUTO CLOSE TIME (then) CLOSE
AUTO CLOSE TIME (then) SET
CLOSE (for 6 secs.)
SET & CLOSE (for 2 secs.)
SET (then power on) & hold until all LED’s are off
DOOR CODE (then power on) & hold until all LED’s
are off
SET & DOOR CODE (the power on) and hold until all
LED’s are off
SET
Deletes all control parameters and transmitter
storage memory.
Re-initialises the Opener to re-calculate force
margin

30
GDO-6v3 EasyRoller Owner Installation Instructions
®
Technical Specifi cations
Factory Default Settings
NOTE:
1. The door must be well balanced. A person should be able to lift the door up manually with very little effort in
Receiver type
Receiver code storage capacity
Transmitter frequency
Coding type
Number of code combinations
Code generation
Courtesy light
Controller fuse
Default
25 secs
3 mins
13
0 secs
Step
-
10 secs
1
1 secs
TrioCode™ type
14 X 4 button Transmitter Codes
TrioCode™ type
Code hopping
Over 4.29 billion random codes
Non-linear encryption algorithm
Festoon Type - 15W 24VD.C.
10A slow blow
Maximum
-
4 mins
20
4 mins
Maximum motor run time
Courtesy light time
Obstruction force margin
Auto close time
Power supply
Standby power
Motor power
Motor type
Controller Voltage
Maximum door opening:
Height:
Weight:


Opener Limits Travel
Width:
230V - 240V A.C. 50Hz
2.2 Watts
100 Watts
24VD.C. Permanent Magnet
24VD.C.
5500mm
3000mm
100kg
3.0 turns of Door Drum
Wheel
case of an emergency.
2. Intermittent operations may occur in areas which experience very strong winds. Strong wind puts extra pressure
on the door and tracks which may in turn trigger the safety obstruction detection system intermittently.
Default Settings & Specifi cations

Owner Installation Instructions GDO-6v3 EasyRoller®
31
Symptom
Door will not operate
PLEASE NOTE:
*Some areas may be prone to excessive radio interference brought on by devices such as cordless telephones,
wireless stereo headphones and baby monitors. It is possible that these devices could cause a degree of
interference such as to greatly reduce the range of the transmitter. In such an instance, please contact your
Automatic Technology dealer for an alternative frequency replacement kit. As this is not a warrantable situation
but an environmental issue, charges may apply for the change over.
Possible cause
Mains power not switched on.
Door is obstructed.
Door is locked or motor jammed.
Door tracks/hardware damaged.
Remedy
Switch on mains power.
Remove obstruction.
Unlock door or remove jam.
Door requires service/repair by
qualifi ed technician.
Turn off “vacation mode”.
Increase force margin setting.
See page 18 to re-calculate force
margin.
Remove obstruction.
Door will not close fully.
Door will not open fully.
Auto-Close not working
Courtesy light not working
Globe keeps blowing
Door starts to close but
automatically reverses to open
position
Door operates from drive unit
(OPERATE) button but not from
transmitter*
See note
The opener is in “vacation mode”.
Adverse weather conditions (wind
or cold) causing door to stiffen and
become tight in the tracks.
Possible obstruction in the
doorway.
Transmitter code not stored in
memory.
Flat battery.
Broken battery lead inside
transmitter.
Door limits positions need to be
reset.
Door limits positions need to be
reset.
Globe blown
Incorrect globe type - must be
festoon Type - 15W 24VD.C.
globe.
PE Beam or wiring faulty.
PE Beam not aligned correctly.
PE Beam is obstructed.
Door obstructed when closing.
Auto-Close time not set.
Auto-Close mode not set
Code transmitter in to openers
memory. Refer step 10.1 on
page 19
Replace battery
Send transmitter to installer or
Automatic
Technology
for
repair.
Reset limits positions. Step 7.3,
page 16.
Reset limits positions. Step 7.3,
page 16.
Replace globe.
Replace globe.
Repair PE Beam or replace
wiring. Re-align optics.
Remove obstruction from path
of
PE.
Remove obstruction.
See Step 15 on page 23.
See Step 15 on page 23.
Troubleshooting

32
GDO-6v3 EasyRoller Owner Installation Instructions
®
Monthly
•
Maintenance
Whilst your opener does not require any
periodic
maintenance, the door that it is fi tted to, does.
Your garage door is a large, heavy, moving
object and should be tested regularly to ensure
it is in good condition. A poorly maintained
door could cause fatal or serious injuries or
serious damage to property.
Service Record

Yearly
Automatic Technology suggests you contact your door
professional to perform an annual door service.
To ensure a long and trouble free life for your opener
the following is recommended:
Disengage
the
opener
and
manually
operate the door: The door must be
smooth to operate by hand. An operating
force on the bottom rail should not exceed
150N (15kg) force.
Each month check that the opener reverses
when the door contacts a 40mm high
object
placed on the fl oor (AS3350).
•
•
NOTE: If the door does not operate smoothly, call
your door professional.
Recordanymaintenance in the following table to assist in any warranty service.
Date
Service by
Signature
Invoice No.
Amount
CAUTION: Frequently examine door, particularly
cables, springs and mountings for signs of wear,
damage or imbalance. Do not use if repair
or adjustment is needed since a fault in the
installation or an incorrectly balanced door may
cause injury. (AS3350)
Adjustments should only be carried out by
experienced persons, as this function can
be dangerous if not performed under strict safety
procedures.
WARNING! Failure to maintain your garage
door may void the warranty on your garage door
opener.
Maintenance

Owner Installation Instructions GDO-6v3 EasyRoller®
33
Spare Parts

34
GDO-6v3 EasyRoller Owner Installation Instructions
®
Notes

Owner Installation Instructions GDO-6v3 EasyRoller®
35
Warranty and Exclusion of Liability
1. This warranty is an addition to any non-excludable conditions or warranties that are implied into this contract
1. One (1) cycle = one (1) open and one (1) close action of the door or gate.
2. This warranty is to be read in conjunction with the owner’s copy of the installation instruction manual.
3 *The door should be balanced in such a way that the user manually is able to open or close the door without using
force not greater than 150N (15kg ) although a greater force may be required for the start of the movement.
by relevant statute, including the Trade Practices Act 1974 (Cwth).
2. Subject to all of the matters set out below, Automatic Technology Australia Pty Ltd (“ATA”) warrants:




(a) roll up door opener drive units for twenty four (24) months or 5000 cycles, whichever occurs fi rst; and
(b) all components and accessories for twelve (12) months, from the date of purchase (specifi ed in the sales
docket receipt) as free of any defects in material and workmanship.
(c) no further warranty will apply for goods repaired in the warranty period.
(d) for all products repaired outside the warranty period, a six (6) month warranty applies from the date of
dispatch.
3. This warranty applies only where the purchaser:



(a) immediately notifi es ATA or the retailer of the alleged defect;
(b) returns the product to the retailer; and
(c) presents the relevant sales docket and this warranty document to the retailer to confi rm the date
of purchase.
4. Except for this warranty, ATA gives no warranties of any kind whatsoever (whether express or implied),
in relation to the product, and all warranties of whatsoever kind relating to the product are, to the extent
permissible by statute, hereby excluded.
5. To the extent permissible by statute, ATA disclaims any liability of whatsoever nature in respect of any claim
or demand for loss or damage which arises out of:



















(a) accidental damage to or normal wear and tear to the product or to the product’s components;
(b) any cost relating to damage resulting from wear and tear;
(c) blown fuses, loss or damage caused by electrical surges, power surges or power spikes;
(d) loss or damage due to theft, fi re, fl ood, rain, water, lightning, storms or any other acts of God;
(e) maximum continuous operating time exceeding one (1) minute in ten (10);
(f) maximum operating force exceeding *20kg (200N) when moving the door manually to the open or
closed position;
(g) door surface area and/or weight exceeding 16.5m and 100kg respectively;
2
(h) door not in safe and correct working order and condition;
(i) evidence of unauthorised repairs;
(j) any cost relating to damage caused by misuse, negligence or failure to maintain the equipment in a
proper working order as per clauses (d) through (h);
(k) installation, adjustment or use which is not in accordance with the instructions set out in installation
instruction manual
(l) attempted or complete modifi cation or repairs to the product carried out by a person who is not
authorised or has not been trained by ATA to carry out such modifi cation or repairs;
(m) faulty or unsuitable wiring of structure to which the product is fi xed or connected;
(n) radio (including citizen band transmission) or any electrical interference;
(o) damage caused by insects;
(p) loss or damage to any property whatsoever or any loss or expense whatsoever resulting or arising there
from or any consequential loss;
(q) any cost or expense arising due to manufacturer recall of any product;
(r) any cost or expense due to negligence of the approved service provider;
(s) installation of a residential garage door opener in a commercial or industrial situation or a non-single
residential dwelling.
6. ATA’s liability under this warranty is limited, at ATA’s absolute option, to replacing or repairing the product
which ATA, in its unfettered opinion, considers to be defective either in material and/or workmanship or to
credit the dealer with the price at which the product was purchased by the dealer.
7. This warranty does not extend to cover labour for installation.
8. This warranty is limited to Return-to-Base (RTB) repair and does not cover labour for on-site attendance.
9. This warranty is void if the Product is not returned to the manufacturer in original or suitably secure packaging.
10. This warranty is only applicable for repairs to the product carried out within Australia.
11. This warranty does not cover consumable items including globes, batteries and fuses.
12. This warranty is not transferable.
13. Where the Product is retailed by any person other than ATA, except for the warranty set out above, such
person has no authority from ATA to give any warranty or guarantee on ATA’s behalf in addition to the
warranty set out above.
NOTES:

GARAGE DOOR OPENERS | GATE OPENERS | REMOTE CONTROL ACCESS SOLUTIONS
© April 2010 Automatic Technology (Australia) Pty Ltd. All rights reserved. TrioCode™, SmartSolar™ are
trademarks and EasyRoller is a registered trademark of Automatic Technology (Australia) Pty Ltd. No part of this
document may be reproduced
®
without prior permission. In an ongoing commitment to product quality we reserve the right to change specifi cation
without
notice. E&OE.
Automatic Technololgy (Australia) Pty Ltd

ABN 11 007 125 368
 (International Enquiries Only)
6-8 Fiveways Boulevard
Keysborough, Victoria, 3173, Australia
P 1300 133 944

+61 2 9722 5666
E
www.ata-aust.com.au
enquiries@aggdoors.com.au
